NMXD0512SOC
lmages are for reference only.NMXD0512SOC
DC DC CONVERTER +/-12V 5W
Datasheet5-DIP Module
35,829 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 235mA, 235mA 4.5V - 5.5V Input
NMXD0512SOC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | NMXSO (5W) |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 235mA, 235mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Efficiency | 65% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 1.59" L x 0.93" W x 0.39" H (40.4mm x 23.6mm x 9.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | NMXD05 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |

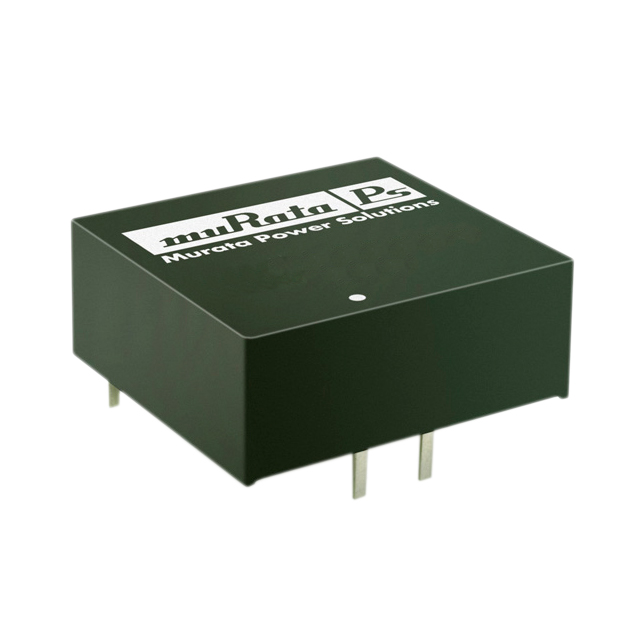

| Part Number | NMXD0512UC | NMXD0505UC | NMXD0515SOC | NMXD0515UC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | |||

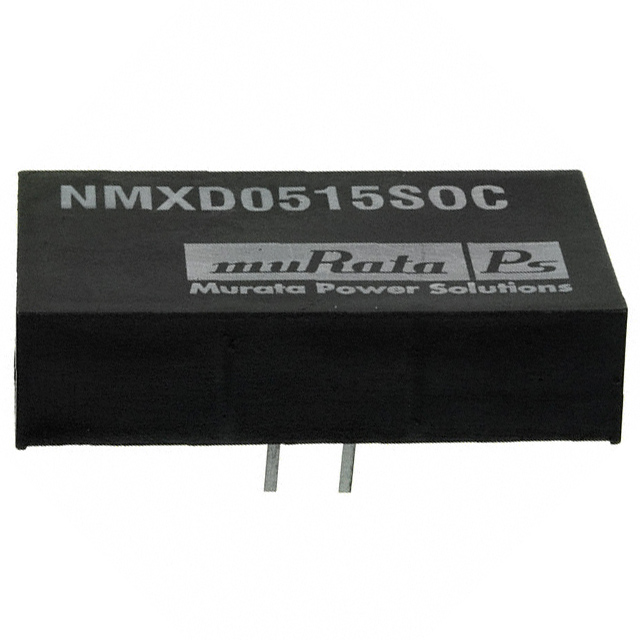

| Description | DC DC CONVERTER +/-12V 5W | DC DC CONVERTER +/-5V 5W | DC DC CONVERTER +/-15V 5W | DC DC CONVERTER +/-15V 5W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
