NR1641GY330CE4S
lmages are for reference only.NR1641GY330CE4S
1A EQUIPPED WITH LOW POWER MODEU
Datasheet6-XFDFN Exposed Pad
32,150 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A DFN1616-6-GY
NR1641GY330CE4S
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | NR1641 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.325V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 2.5 mA |
| PSRR | 75dB ~ 85dB (1kHz ~ 100kHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

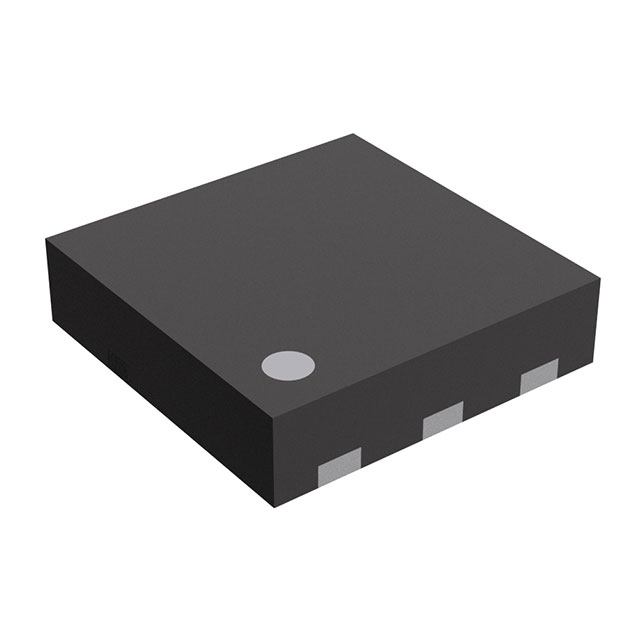

| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1616-6-GY |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

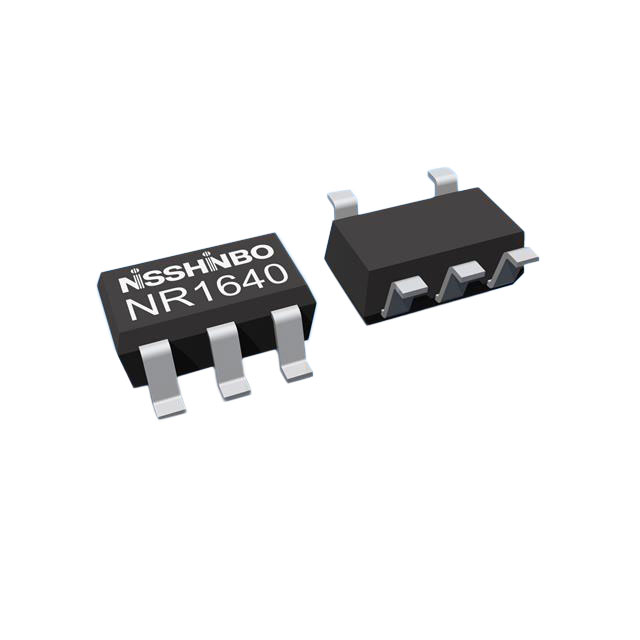

| Part Number | NR1641GY330BE4S | NR1640DC280AE1Q | NR1640DC290AE1Q | NR1640DC330AE1Q |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | ||||
| Description | 1A EQUIPPED WITH LOW POWER MODEU | 200MA ULTRA-LOW NOISE VOLTAGE RE | 200MA ULTRA-LOW NOISE VOLTAGE RE | 200MA ULTRA-LOW NOISE VOLTAGE RE |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
