NRS8040T6R8NJGJ8

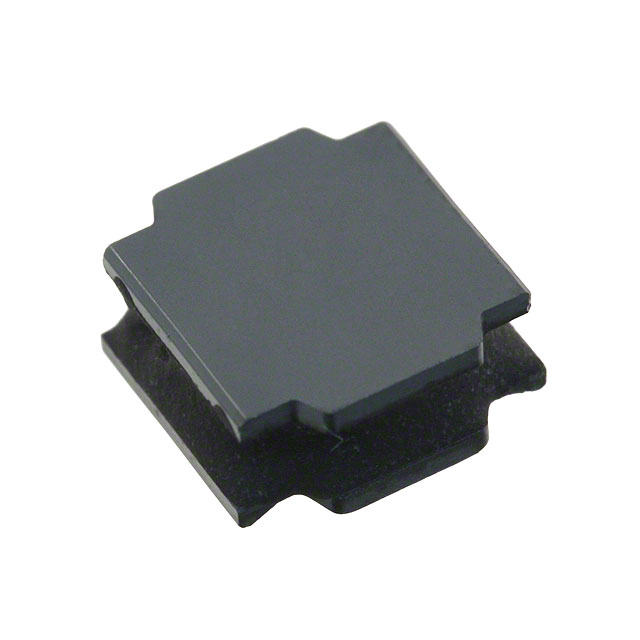

lmages are for reference only.NRS8040T6R8NJGJ8
FIXED IND 6.8 UH 3.7A 0.0325 OHM
Datasheet3131 (8080 Metric)
16,871 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Unshielded Wirewound Inductor 3.7 A 25mOhm 3131 (8080 Metric)
NRS8040T6R8NJGJ8
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | NR, S Type |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | 4.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 25mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 24MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 3131 (8080 Metric) |
| Supplier Device Package | 3131 |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | NRS8040T6R8NJGJ | NRS8040T6R8NJGJV | NRS8040T6R8NJGN | NRS8040T0R9NJGJ |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 3.7A 32.5MOHM SM | FIXED IND 6.8UH 3.7A 32.5MOHM SM | FIXED IND 6.8UH 3.7A 32.5MOHM SM | FIXED IND 900NH 7.8A 7.8MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
