NSCDRRN005PDUNV

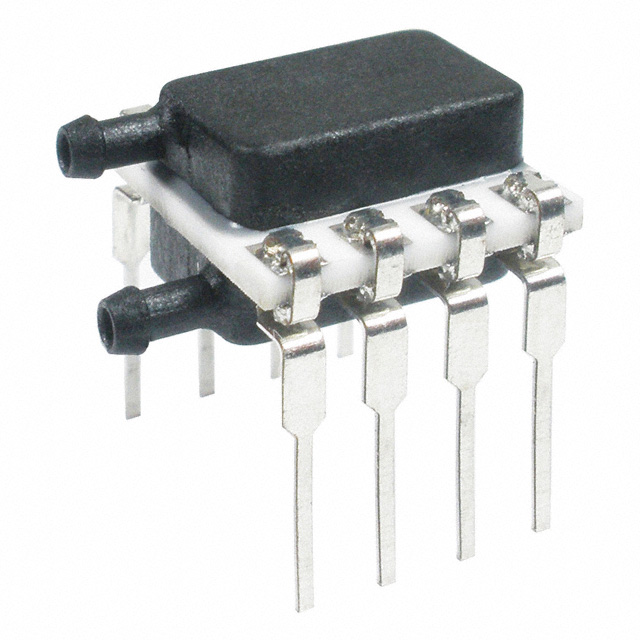

lmages are for reference only.NSCDRRN005PDUNV
SENSOR 5PSID 0.08" .15V 8DIP
Datasheet8-DIP (0.524", 13.30mm), Dual Ports, Same Side
24,323 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±5PSI (±34.47kPa) Differential Male - 0.08" (1.93mm) Tube, Dual 0 mV ~ 150 mV (5V) 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
NSCDRRN005PDUNV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | TruStability® NSC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | NSCDRRN |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±5PSI (±34.47kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 150 mV (5V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.08" (1.93mm) Tube, Dual |
| Port Style | Barbed |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | ±20PSI (±137.9kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | NSCDRRN005PDUNV | NSCDRRN001NDUNV | NSCDRRN001PDUNV | NSCDRRN001PGUNV |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 5PSID 0.08" .15V 8DIP | SENSOR 0.04PSID 0.08" .0785V DIP | SENSOR 1PSID 0.08" .065V 8DIP | SENSOR 1PSIG 0.08" .0325V 8DIP |
| Series | TruStability® NSC | TruStability® NSC | TruStability® NSC | TruStability® NSC |
| Packaging | Bulk | Tray | Bulk | Bulk |

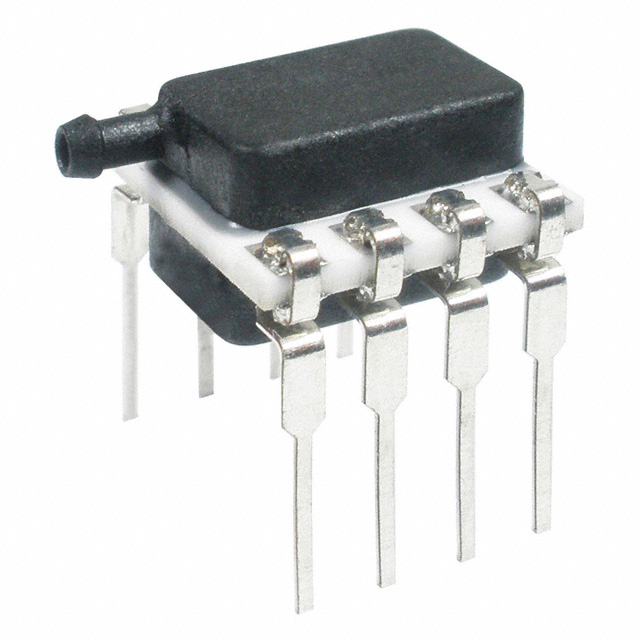

Recommended Products
