P4KE15CA

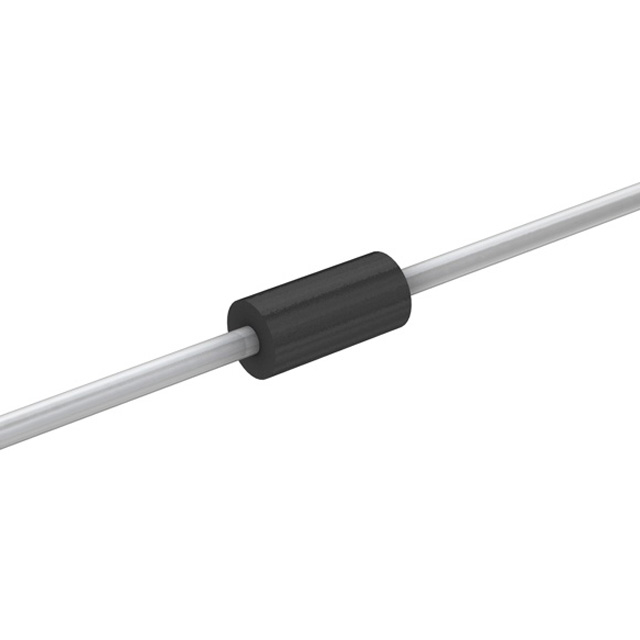

lmages are for reference only.P4KE15CA
TVS DIODE 12.8VWM 21.2VC DO204AL
DatasheetDO-204AL, DO-41, Axial
80,287 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21.2V Clamp 20A Ipp Tvs Diode Through Hole DO-204AL (DO-41)
P4KE15CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | P4KE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12.8V |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 21.2V |
| Current - Peak Pulse (10/1000µs) | 20A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Base Product Number | P4KE15 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | P4KE15C | P4KE15C | P4KE15C-B | P4KE15CA |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DO15 12.1V 400W BIDIR | 400W, 15V, BIDIRECTIONAL, TVS | TVS DIODE 12.8VWM 22.26V DO204AL | TVS DIODE 12.8VWM 21.2VC DO204AC |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Diotec Semiconductor |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
