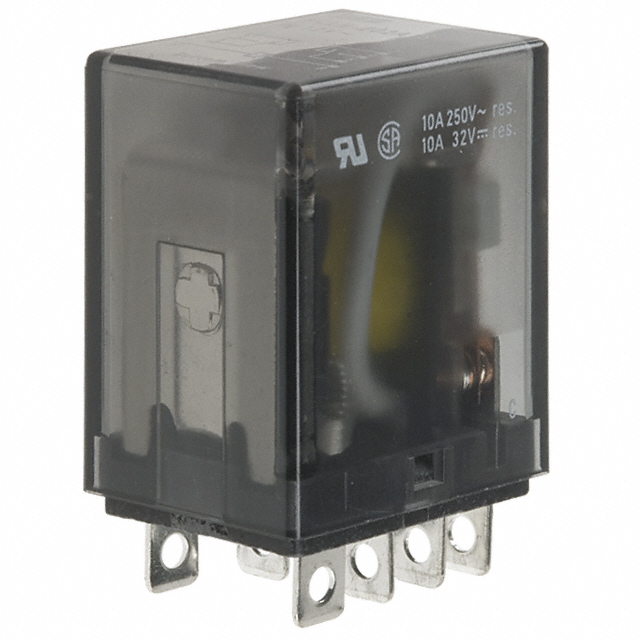

General Purpose Relay DPDT (2 Form C) 12VAC Coil Socketable
PCLH-202A1S,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PCLH, OEG |
| Packaging | Tray |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 12VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 120VAC - Max |
| Load - Max Switching | 1800VA |
| Coil Current | 300 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 9.6 VAC |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 40 Ohms |
| Base Product Number | PCLH-202 |
| Product Attribute |  |
 |
 |
 |
| Part Number | PCLH-102D1S,000 | PCLH-103D1SP,000 | PCLH-202D1S,000 | PCLH-202D1SP,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE SPDT 15A 12V | RELAY GEN PURPOSE SPDT 15A 24V | RELAY GEN PURPOSE DPDT 15A 12V | RELAY GEN PURPOSE DPDT 15A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Bulk | Tray | Tray |
