PFC4124QM-151K11D-00

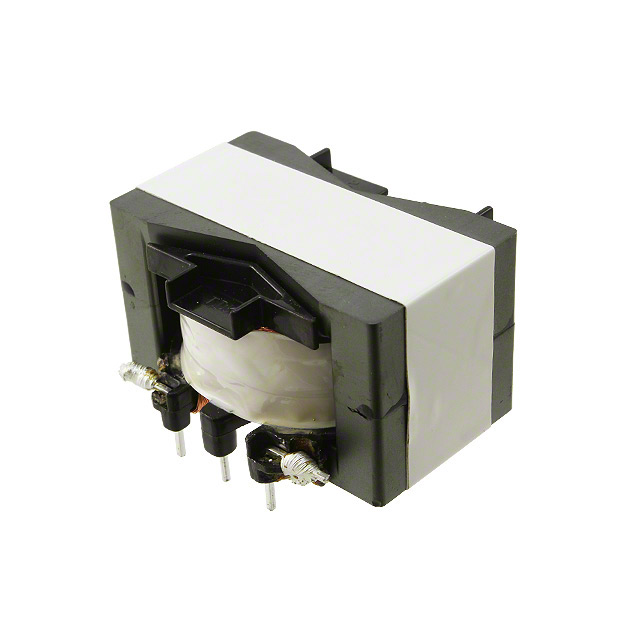

lmages are for reference only.PFC4124QM-151K11D-00
CHOKE COIL, 150UH
DatasheetRadial, Horizontal, 8 Leads
24,740 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 µH Unshielded Drum Core, Wirewound Inductor 11.1 A Radial, Horizontal, 8 Leads Choke Coils for PFC (Pin Terminal Type)
PFC4124QM-151K11D-00
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | PFC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 11.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | - |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -30°C ~ 120°C |
| Inductance Frequency - Test | 50 kHz |
| Features | Choke Coils for PFC (Pin Terminal Type) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 8 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.693" L x 1.496" W (43.00mm x 38.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | PFC4124QM-181K09D-00 | PFC4124QM-181K09D-00 | AMDLA1707S-6R8MT | 1210-123K |
| Manufacturer | TDK Corporation | TDK Corporation | Abracon LLC | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CHOKE COMMON MODE | CHOKE COMMON MODE | FIXED IND 6.8UH 24A 7.2MOHM SMD | FIXED IND 12UH 272MA 2.5 OHM SMD |
| Series | TDK Corporation | TDK Corporation | Abracon LLC | Delevan |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
