PLEA67BBA2R2M-1PT00
lmages are for reference only.PLEA67BBA2R2M-1PT00
FIXED IND 2.2UH 800MA 620MOHM SM
Datasheet0402 (1006 Metric)
33,847 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Unshielded Thin Film Inductor 800 mA 620mOhm Max 0402 (1006 Metric)
PLEA67BBA2R2M-1PT00
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | PLE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Metal |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 620mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

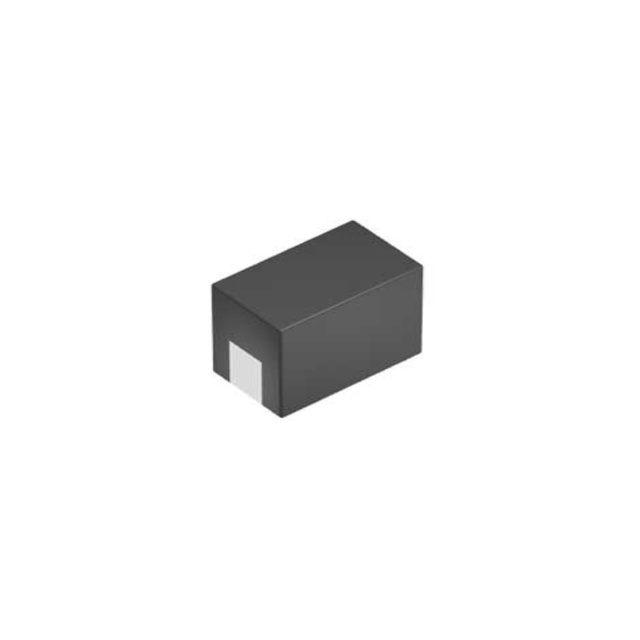

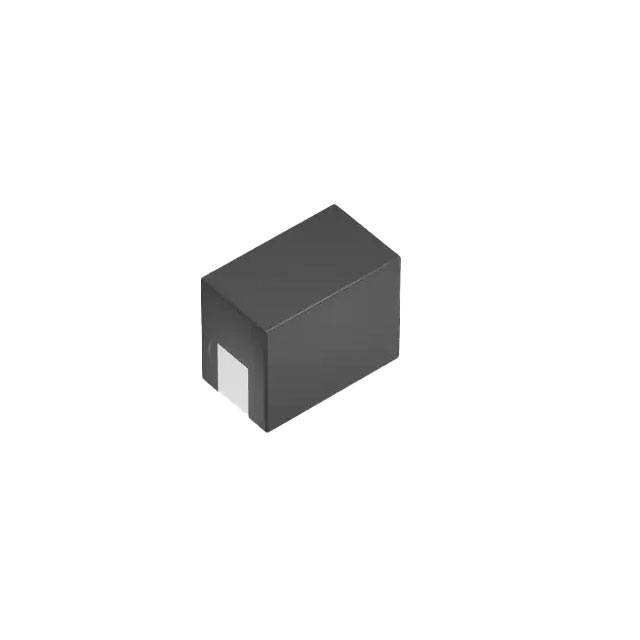

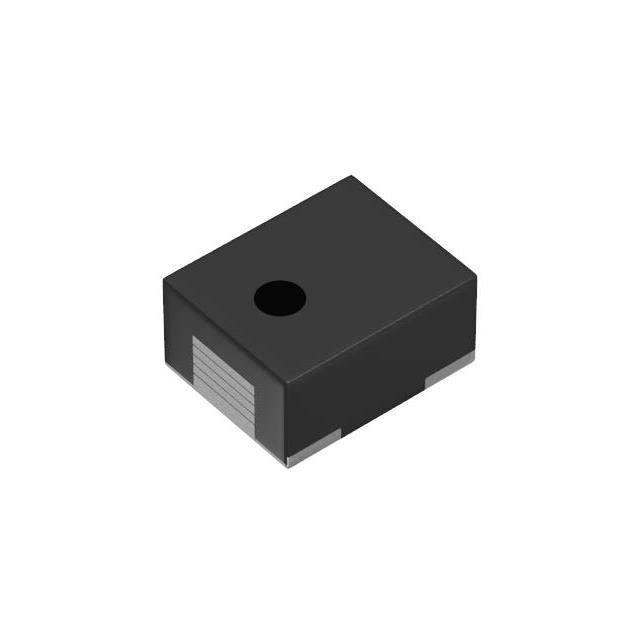

| Part Number | PLEA67BBA1R0M-1PT00 | PLEA67BCA4R7M-1PT00 | PLEA85DCA1R0M-1PT00 | PLEA85DCA2R2M-1PT00 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTORS FOR POWER CIRCUITS, CO | INDUCTORS FOR POWER CIRCUITS, CO | IND,1.0UH,1.0A, 0.25OHMS,-40~+85 | IND,1.0UH,1.0A, 0.25OHMS,-40~+85 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
