PMPB33XN,115
lmages are for reference only.PMPB33XN,115

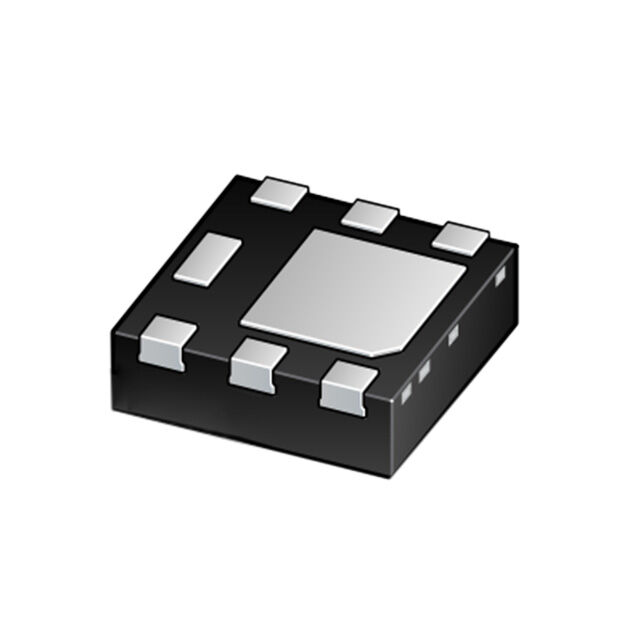

MOSFET N-CH 30V 4.3A DFN2020MD-6
Datasheet6-UDFN Exposed Pad
62,873 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 4.3A (Ta) 1.5W (Ta), 8.3W (Tc) Surface Mount DFN2020MD-6
PMPB33XN,115
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 47mOhm @ 4.3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 505 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta), 8.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN2020MD-6 |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | PMPB33 |
| Gate Charge (Qg) (Max) @ Vgs | 7.6 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | PMPB33XN,115 | PMPB33XP,115 | PMBF170,215 | PMBF170,235 |
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 30V 4.3A DFN2020MD-6 | MOSFET P-CH 20V 5.5A DFN2020MD-6 | MOSFET N-CH 60V 300MA TO236AB | MOSFET N-CH 60V 300MA TO236AB |
| Series | - | - | TrenchMOS™ | TrenchMOS™ |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
