PTH12010YAD
lmages are for reference only.PTH12010YAD
DC DC CONVERTER 0.55-1.8V 27W
Datasheet10-DIP Module
63,907 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.55 ~ 1.8V 15A 10.8V - 13.2V Input
PTH12010YAD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | PTHxx010Y (27W) |
| Packaging | Tray |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 0.55 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A |
| Power (Watts) | 27 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

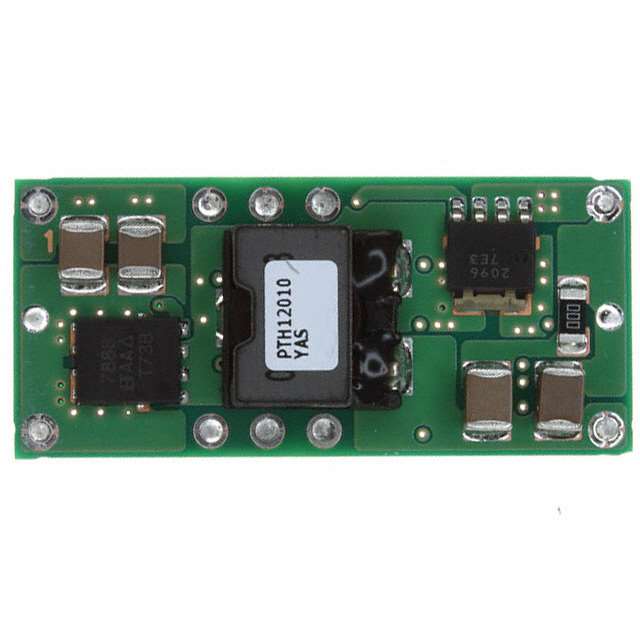

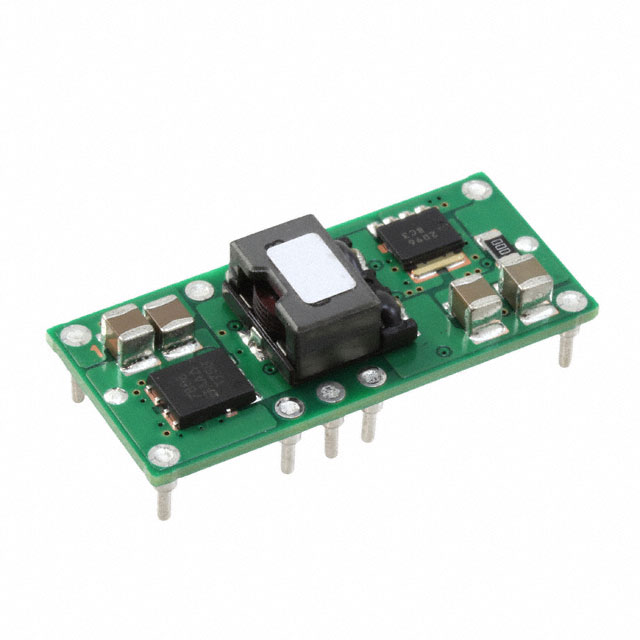

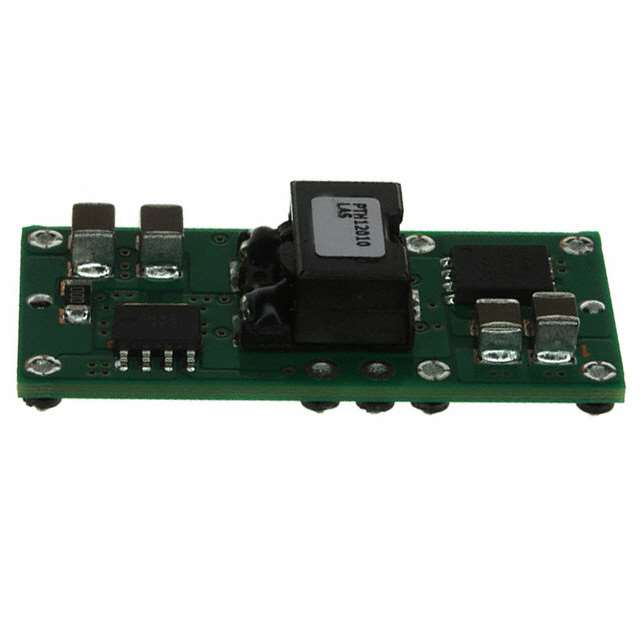

| Part Number | PTH12010YAH | PTH12010YAS | PTH12010YAST | PTH12010YAZ |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.55-1.8V | DC DC CONVERTER 0.55-1.8V | DC DC CONVERTER 0.55-1.8V | DC DC CONVERTER 0.55-1.8V |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
