Product CatalogPart Number
REF1009331M016K
Manufacturer
KYOCERA AVXDescription
CAP ALUM 330UF 20% 16V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
53,461 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
REF1009331M016K
REF1009331M016K
lmages are for reference only.Payment Methods
Delivery Services
330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Quick Inquiry
REF1009331M016K
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | KYOCERA AVX |
| Series | REF |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 680 mA @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 92 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | REF1009221M035K | REF1009270M100K | REF1013101M063K | REF1013151M050K |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220UF 20% 35V RADIAL TH | CAP ALUM 27UF 20% 100V RADIAL TH | CAP ALUM 100UF 20% 63V RADIAL TH | CAP ALUM 150UF 20% 50V RADIAL TH |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
Customers Also Interested in
Recommended Products

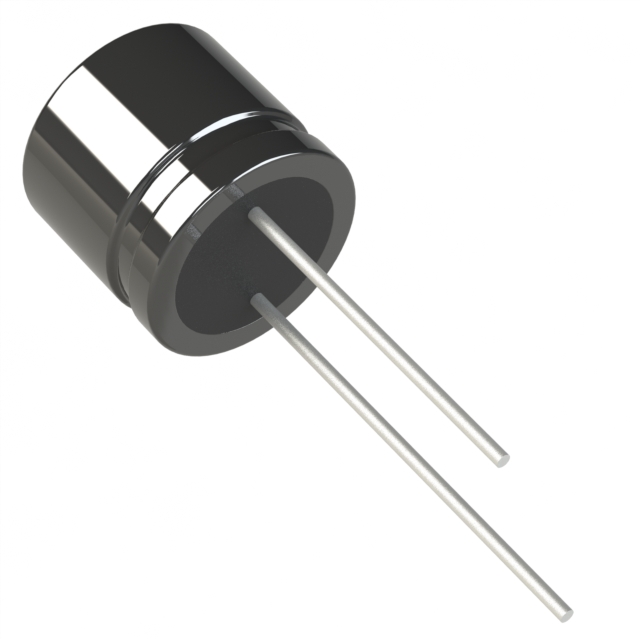

REF1009221M035K
KYOCERA AVX
REF1009270M100K
KYOCERA AVX
REF1013101M063K
KYOCERA AVX

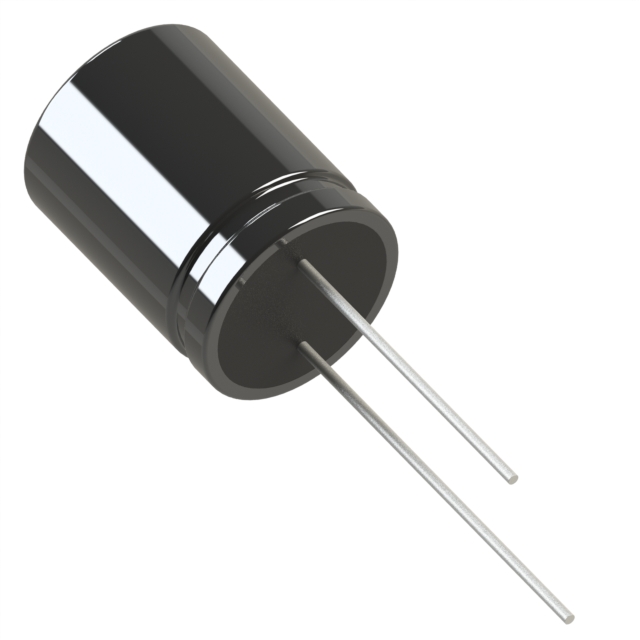

REF1013151M050K
KYOCERA AVX
REF1013151M063K
KYOCERA AVX
REF1013221M050K
KYOCERA AVX
REF1013330M100K
KYOCERA AVX
REF1013330M120K
KYOCERA AVX
REF1013331M025K
KYOCERA AVX
REF1013470M100K
KYOCERA AVX
REF1013471M016K
KYOCERA AVX
REF1013681M010K
KYOCERA AVX
REF1013820M063K
KYOCERA AVX

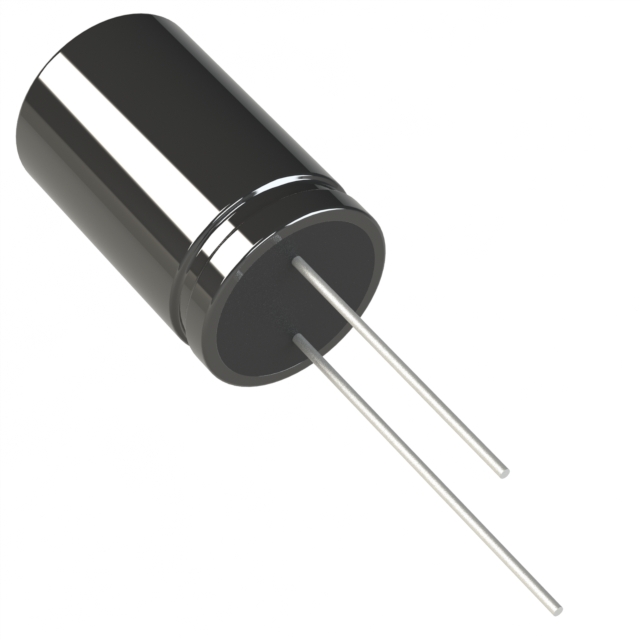

REF1016101M100K
