RT9081A-1KGQZA
lmages are for reference only.RT9081A-1KGQZA
IC REG LINEAR 1.05V 500MA 6ZADFN
Datasheet6-XFDFN Exposed Pad
77,047 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 6-ZADFN (1.2x1.2)
RT9081A-1KGQZA
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.05V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 110 µA |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Current Limit, Thermal Shutdown, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-ZADFN (1.2x1.2) |
| Base Product Number | RT9081 |
| Current - Supply (Max) | - |
| Product Attribute | .jpg "RT9081A-09GQZA(2)") |
 |
 |
 |
| Part Number | RT9081A-09GQZA(2) | RT9081A-10GQZA | RT9081A-11GQZA | RT9081A-12GQZA |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 0.9V 500MA 6ZADFN | IC REG LINEAR 1V 500MA 6ZADFN | IC REG LINEAR 1.1V 500MA 6ZADFN | IC REG LINEAR 1.2V 500MA 6ZADFN |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

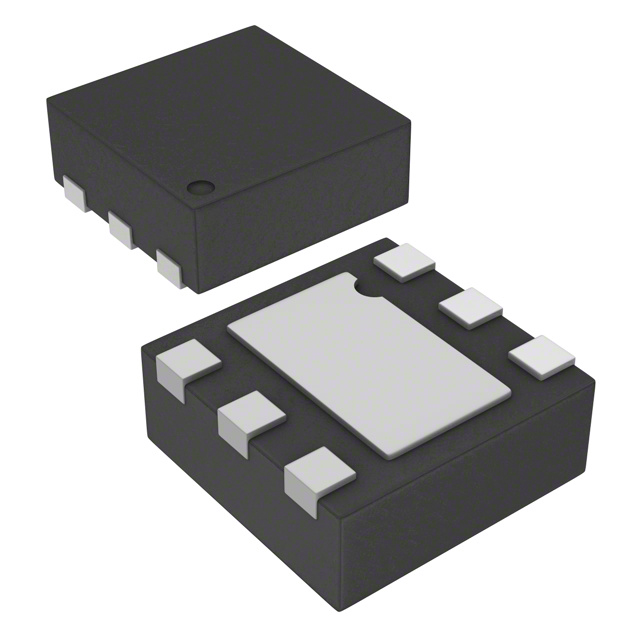

.jpg "RT9081A-13GQZA(2)")
