Product CatalogPart Number
SDR0403-2R7ML
Manufacturer
Bourns Inc.Description
FIXED IND 2.7UH 2.43A 52MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
53,281 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SDR0403-2R7ML
SDR0403-2R7ML
lmages are for reference only.Payment Methods
Delivery Services
2.7 µH Unshielded Drum Core, Wirewound Inductor 2.43 A 52mOhm Max Nonstandard
Quick Inquiry
SDR0403-2R7ML
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | SDR0403 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.43 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 52mOhm Max |
| Q @ Freq | 28 @ 7.96MHz |
| Frequency - Self Resonant | 75MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Base Product Number | SDR0403 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SDR0403-2R2ML | SDR0403-100ML | SDR0403-101KL | SDR0403-120ML |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 2.6A 47 MOHM SMD | FIXED IND 10UH 1.15A 180MOHM SMD | FIXED IND 100UH 350MA 1.9OHM SMD | FIXED IND 12UH 1.05A 210MOHM SMD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SDR0403-100ML
Bourns Inc.
SDR0403-101KL
Bourns Inc.
SDR0403-120ML
Bourns Inc.
SDR0403-121KL
Bourns Inc.
SDR0403-150ML
Bourns Inc.
SDR0403-151KL
Bourns Inc.
SDR0403-180ML
Bourns Inc.
SDR0403-181KL
Bourns Inc.
SDR0403-1R0ML
Bourns Inc.
SDR0403-1R4ML
Bourns Inc.
SDR0403-1R8ML
Bourns Inc.
SDR0403-220ML
Bourns Inc.

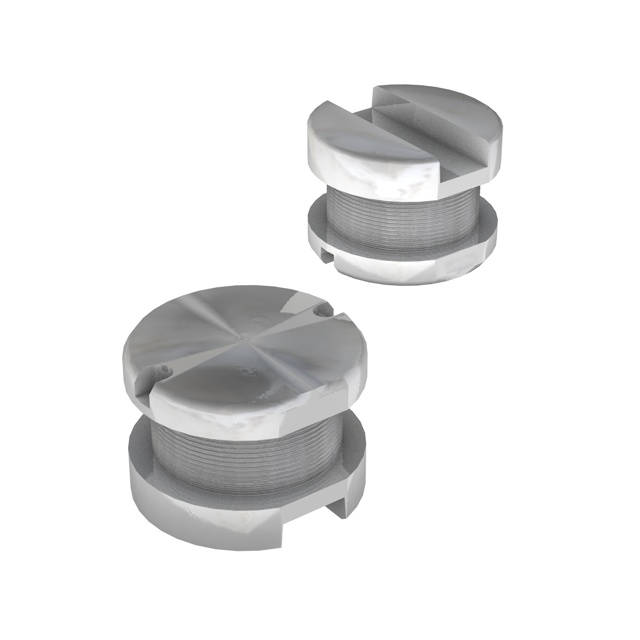

SDR0403-221KL
Bourns Inc.

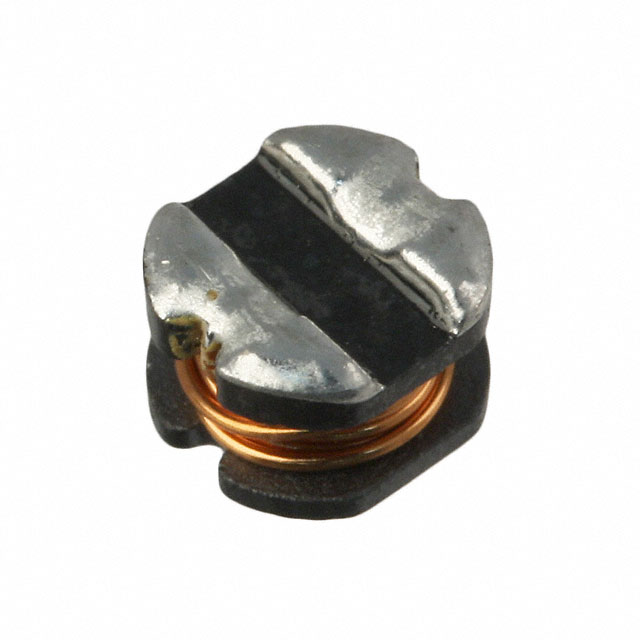

SDR0403-270KL
