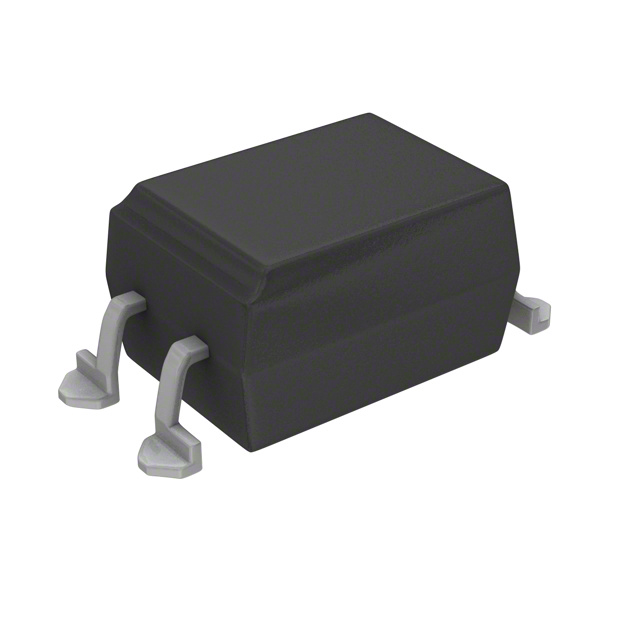

SFH6156-2X001
lmages are for reference only.SFH6156-2X001
OPTOISOLATOR 5.3KV TRANS 4SMD
Datasheet4-SMD, Gull Wing
86,432 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD
SFH6156-2X001
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 3µs, 2.3µs |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | SFH6156 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SFH6156-2X001T | SFH6156 | SFH6156-1 | SFH6156-1T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | OPTOISOLATOR 5.3KV TRANS 4SMD | OPTOISOLATOR | OPTOISOLATOR 5.3KV TRANS 4SMD | OPTOISOLATOR 5.3KV TRANS 4-SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
