SI6983DQ-T1-E3
lmages are for reference only.SI6983DQ-T1-E3
MOSFET 2P-CH 20V 4.6A 8TSSOP
Datasheet8-TSSOP (0.173", 4.40mm Width)
63,276 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 4.6A 830mW Surface Mount 8-TSSOP
SI6983DQ-T1-E3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 4.6A |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 5.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 400µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Power - Max | 830mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | SI6983 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

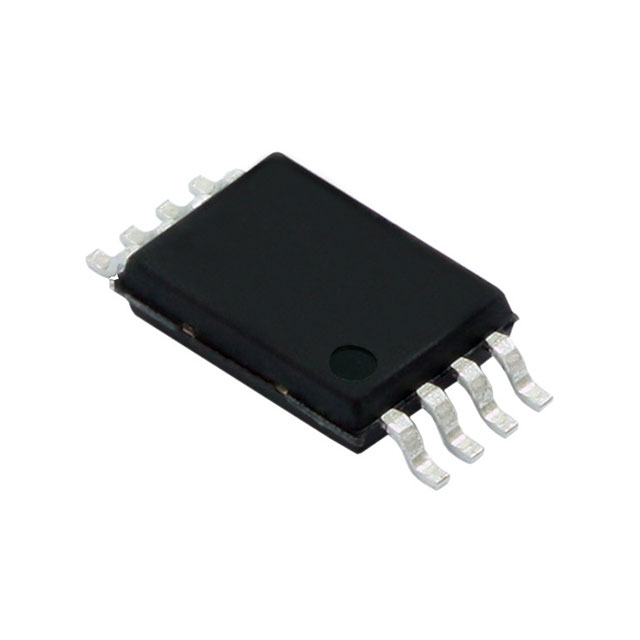

| Part Number | SI6983DQ-T1-GE3 | SI6913DQ-T1-BE3 | SI6913DQ-T1-E3 | SI6913DQ-T1-GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2P-CH 20V 4.6A 8TSSOP | MOSFET 2P-CH 12V 4.9A 8TSSOP | MOSFET 2P-CH 12V 4.9A 8TSSOP | MOSFET 2P-CH 12V 4.9A 8TSSOP |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
