SI8273ABD-IMR
lmages are for reference only.SI8273ABD-IMR
DGTL ISO 2.5KV 2CH GT DVR 14LGA
Datasheet14-VFLGA
99,259 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4A Gate Driver RF Coupling 2500Vrms 2 Channel 14-LGA (5x5)
SI8273ABD-IMR
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si827x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | RF Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 200kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Pulse Width Distortion (Max) | 8ns |
| Rise / Fall Time (Typ) | 10.5ns, 13.3ns |
| Current - Output High, Low | 1.8A, 4A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 4.6V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFLGA |
| Supplier Device Package | 14-LGA (5x5) |
| Approval Agency | CQC, CSA, UR, VDE |
| Base Product Number | SI8273 |
| Current - DC Forward (If) (Max) | - |
| Product Attribute |  |
 |
 |
 |

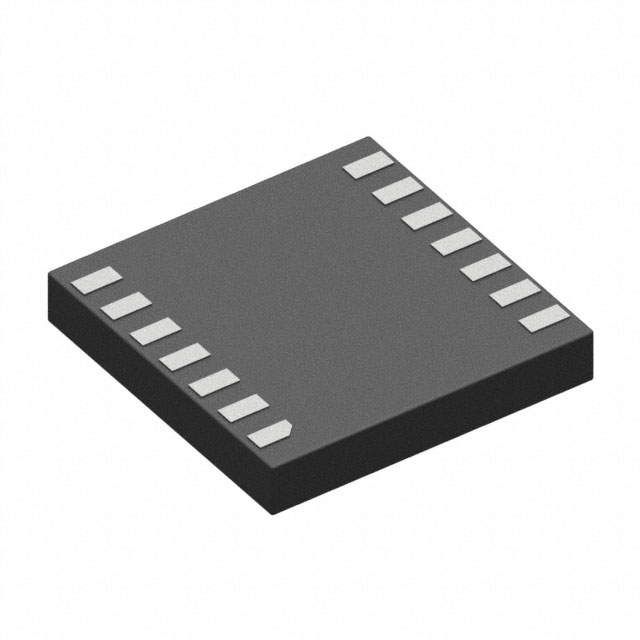

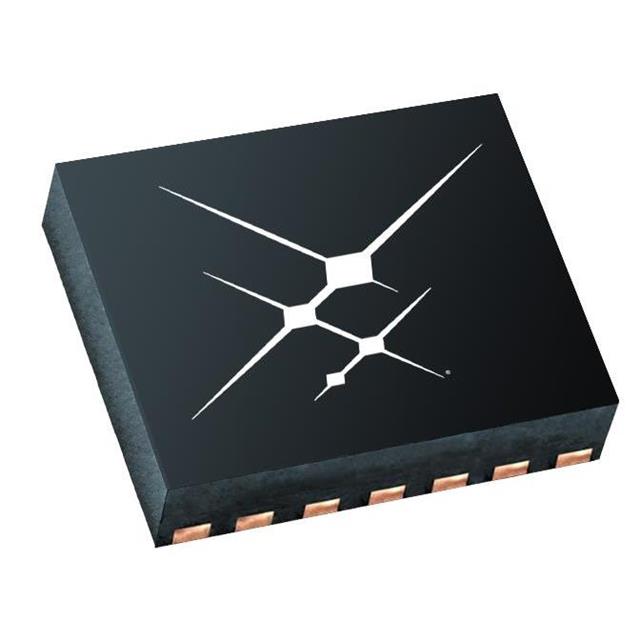

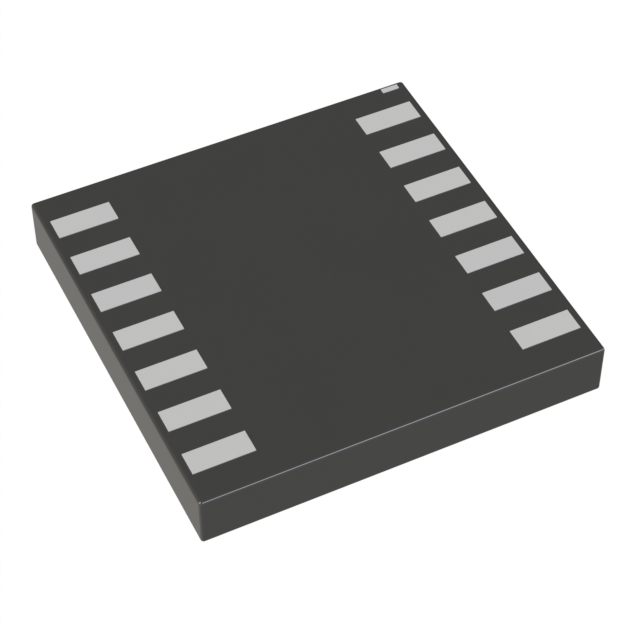

| Part Number | SI8273ABD-IM | SI8273ABD-IM1 | SI8273ABD-IM1R | SI8273ABD-AM1 |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | DGTL ISO 2.5KV 2CH GT DVR 14LGA | DGTL ISO 2.5KV 2CH GT DVR 14QFN | DGTL ISO 2.5KV 2CH GT DVR 14QFN | DGTL ISO 2.5KV 2CH GT DVR 14DFN |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Tube | Tray | Tape & Reel (TR) | Tray |
