SMF4L43AH

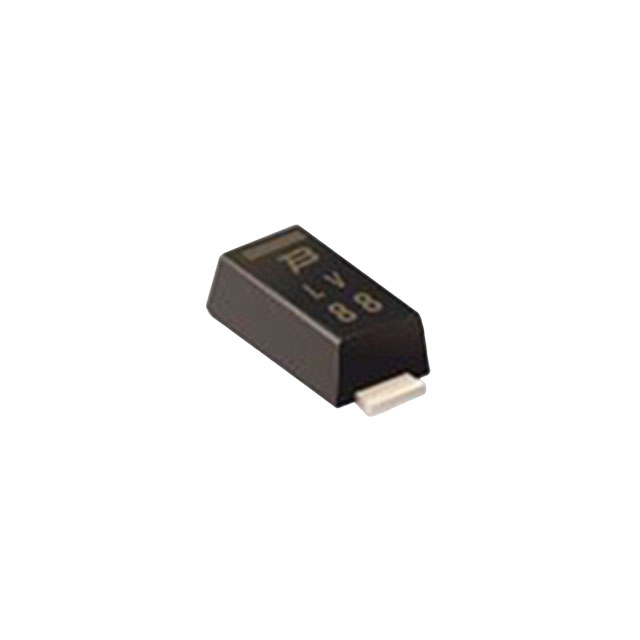

lmages are for reference only.SMF4L43AH
400W, 50.3V, UNIDIRECTIONAL, TVS
DatasheetSOD-123W
91,537 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
69.4V Clamp 5.8A Ipp Tvs Diode Surface Mount SOD-123W
SMF4L43AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 43V |
| Voltage - Breakdown (Min) | 47.8V |
| Voltage - Clamping (Max) @ Ipp | 69.4V |
| Current - Peak Pulse (10/1000µs) | 5.8A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123W |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
 |
| Part Number | SMF4L43A | SMF4L43A | SMF4L43A | SMF4L43A-7 |
| Manufacturer | Littelfuse Inc. | Bourns Inc. | Taiwan Semiconductor Corporation | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 43VWM 69.4VC SOD123FL | DIODE TVS 400W 43V UNI SMF | 400W, 50.3V, UNIDIRECTIONAL, TVS | TRANSIENT VOLTAGE SUPPRESSOR PP |
| Series | Littelfuse Inc. | Bourns Inc. | Taiwan Semiconductor Corporation | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
