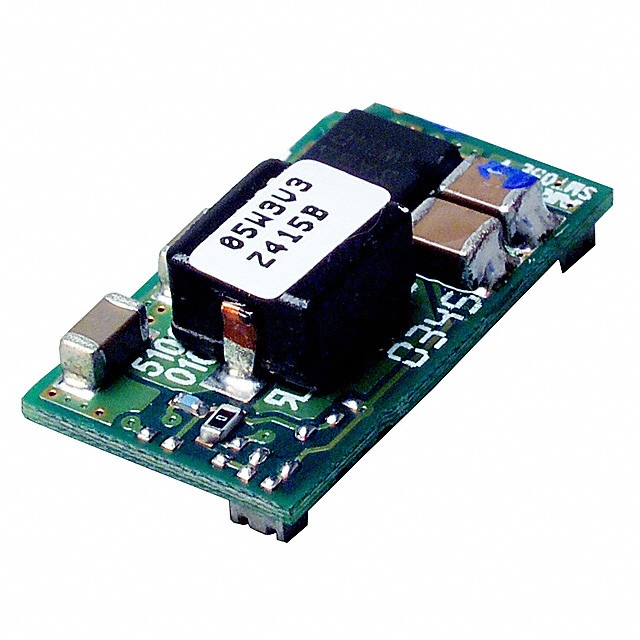

SMT05E-05W3V3J
lmages are for reference only.SMT05E-05W3V3J
DC DC CONVERTER 0.8-3.6V 8W
Datasheet5-SMD Module
96,817 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 5A 3V - 5.5V Input
SMT05E-05W3V3J
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | SMT05E (16W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 8 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD Module |
| Size / Dimension | 0.80" L x 0.45" W x 0.26" H (20.3mm x 11.4mm x 6.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | SMT05E |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
|
 |

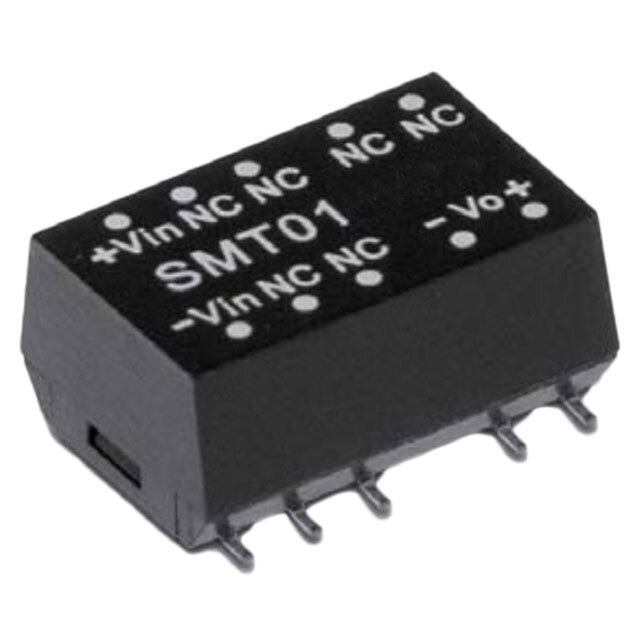

| Part Number | SMT05E-05W3V3 | SMT01A-05 | SMT01A-05 | SMT01A-12 |
| Manufacturer | ARTESYN / Advanced Energy | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.8-3.6V 8W | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 1W | DC DC CONVERTER 12V 996MW |
| Series | ARTESYN / Advanced Energy | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| Packaging | Tray | Tube | Tube | Tube |
