T56D106M050CSA120

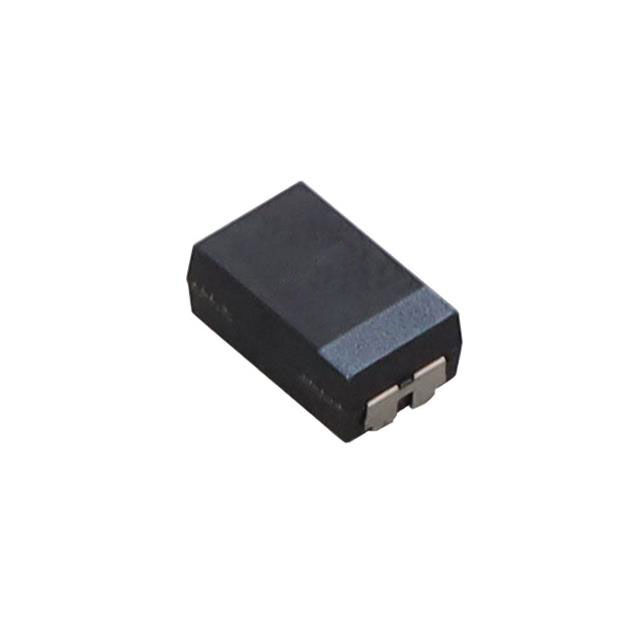

lmages are for reference only.T56D106M050CSA120
CAP TANT POLY 10UF 50V 2917
Datasheet2917 (7343 Metric)
15,308 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF Molded Tantalum Polymer Capacitor 50 V 2917 (7343 Metric) 120mOhm @ 100kHz
T56D106M050CSA120
| Category | Capacitors - Tantalum Polymer Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | vPolyTan™ T56 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Lead Spacing | - |
| Manufacturer Size Code | D |
| Ratings | COTS |
| Features | High Reliability |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | T521D226M035ATE0407706 | T541X686K025AH8710 | T520V157M006ATE0407608 | T540B107M004CH85107280 |
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | 22.0UF 35.0V | CAP TANT POLY 68UF 25V 2917 | 150.UF 6.0V | CAP TANT POLY 100UF 4V 1411 |
| Series | - | KO-CAP® T541 | KO-CAP® T520 | KO-CAP® T540 |
| Packaging | Box | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
