TLS115B0EJXUMA1
lmages are for reference only.TLS115B0EJXUMA1
IC REG LINEAR POS ADJ 150MA DSO8
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
52,777 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA PG-DSO-8
TLS115B0EJXUMA1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Infineon Technologies |
| Series | OPTIREG™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 2V |
| Voltage - Output (Max) | 14V |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA |
| PSRR | 85dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-DSO-8 |
| Base Product Number | TLS115 |
| Current - Supply (Max) | 14 mA |
| Product Attribute |  |
 |
 |
 |

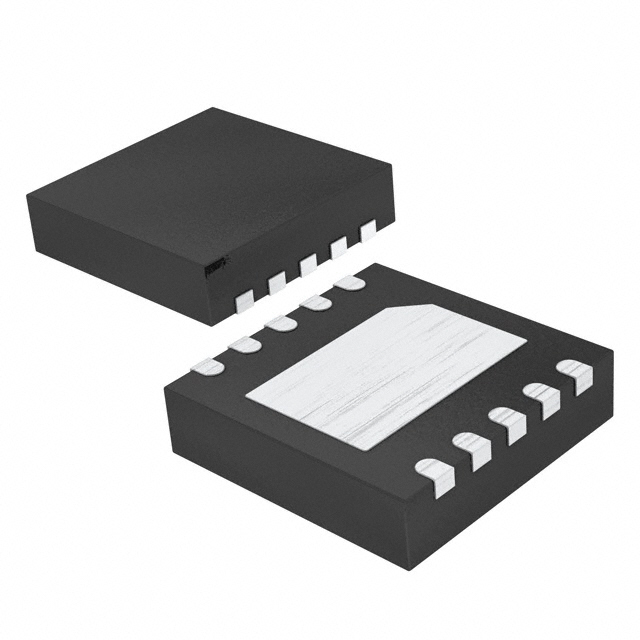

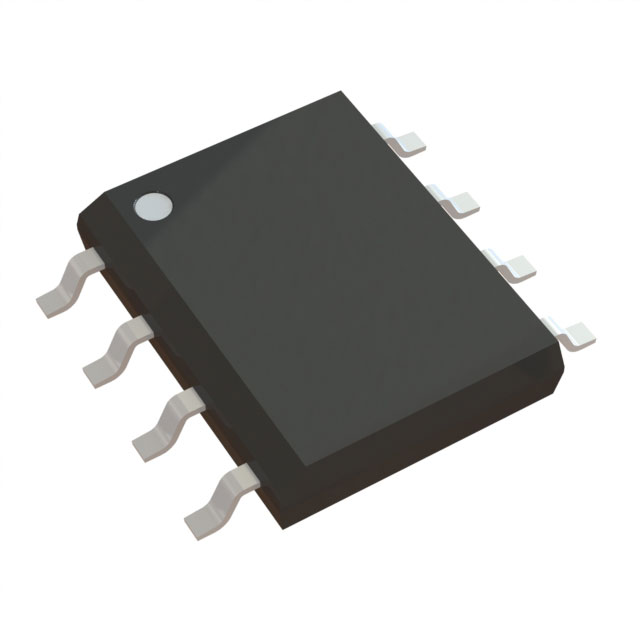

| Part Number | TLS115B0LDXUMA1 | TLS115D0EJXUMA1 | TLS115D0LDXUMA1 | S-19212D50A-V5T2U |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | ABLIC Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 150MA TSON-10 | IC REG LINEAR POS ADJ 150MA DSO8 | IC REG LIN POS ADJ 150MA TSON-10 | LINEAR IC |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | ABLIC Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
