UCLAMP1211Z.TFT

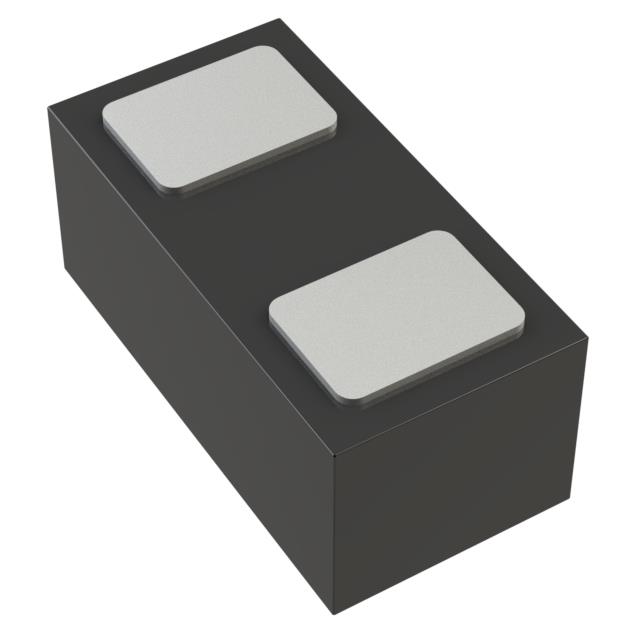

lmages are for reference only.UCLAMP1211Z.TFT
TVS DIODE 12VWM 25VC SLP0603P2X3
Datasheet0201 (0603 Metric)
72,696 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SLP0603P2X3
UCLAMP1211Z.TFT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | uClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 14.2V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
| Power - Peak Pulse | 175W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 19pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | SLP0603P2X3 |
| Base Product Number | UCLAMP1211 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UCLAMP1211Z.TNT | UCLAMP1211P.TCT | UCLAMP1211P.TFT | UCLAMP1211P.TNT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TVS DIODE 12VWM 25VC SLP0603P2X3 | TVS DIODE 12VWM 28.5VC SLP1006P2 | UCLAMP 12V 1-LINE ESD PROT | TVS DIODE 12VWM 28.5VC SLP1006P2 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
