UCLAMP3324P.TCT
lmages are for reference only.UCLAMP3324P.TCT
TVS DIODE 3.3VWM 8VC SLP2116P8
Datasheet8-UFDFN Exposed Pad
41,794 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP2116P8
UCLAMP3324P.TCT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | uClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.5V |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Supplier Device Package | SLP2116P8 |
| Base Product Number | UCLAMP3324 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

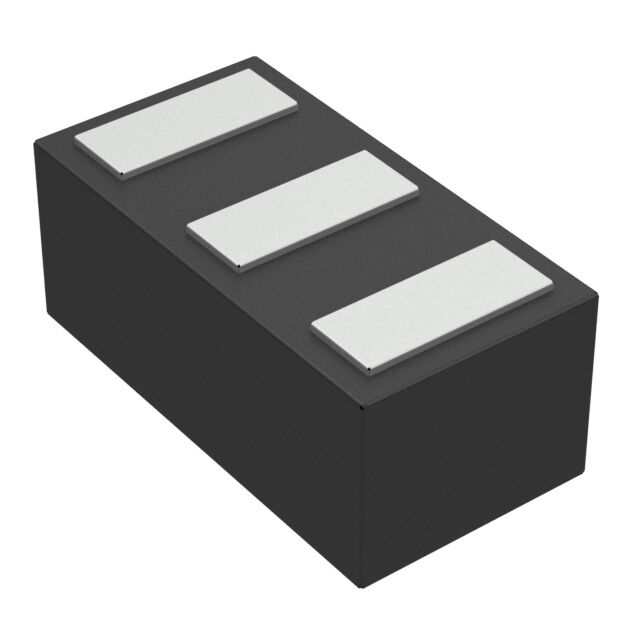

| Part Number | UCLAMP3321ZATFT | UCLAMP02101ZA.F | UCLAMP0301PQTNT | UCLAMP03321PQ.C |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 3.3V 8.5V SLP0603P2X3F | 2.1V 36PF TYP 15A 0.08R ESD SLP0 | TVS DIODE 3VWM 8VC SLP1006P2 | 1-LINE, 3.3V ESD & SURGE PROTECT |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
