Product CatalogPart Number
VLS5045EX-221M-CA
Manufacturer
TDK CorporationDescription
FIXED IND 220UH 450MA 1.365 OHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
39,053 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VLS5045EX-221M-CA
VLS5045EX-221M-CA

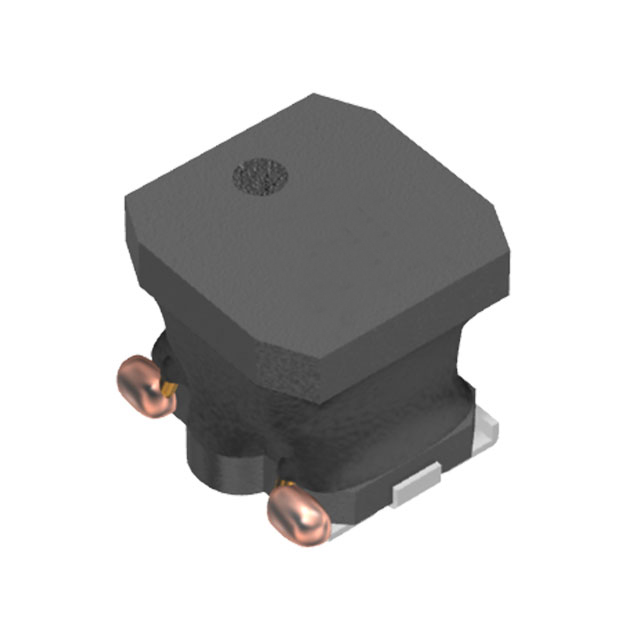

lmages are for reference only.Payment Methods
Delivery Services
220 µH Shielded Drum Core, Wirewound Inductor 450 mA 1.365Ohm Max Nonstandard
Quick Inquiry
VLS5045EX-221M-CA
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLS-EX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | 450mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.365Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | VLS5045EX-221M | VLS5045EX-221M-CA | VLS5045EX-221M-H | VLS5045EX-220M |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH 450MA 1.365 OHM | FIXED IND 220UH 450MA 1.365 OHM | FIXED IND 220UH 450MA 1.365 OHM | FIXED IND 22UH 1.8A 162.5MOHM SM |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
