VS-CPV364M4KPBF

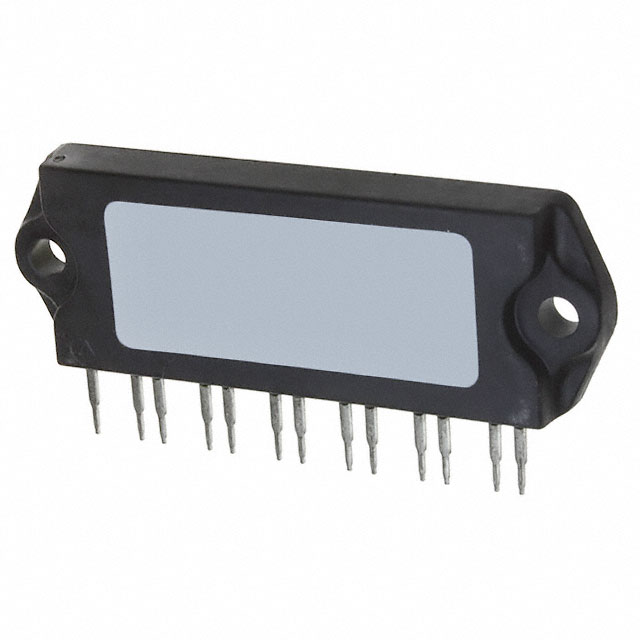

lmages are for reference only.VS-CPV364M4KPBF
IGBT MODULE 600V 24A 63W IMS-2
Datasheet19-SIP (13 Leads), IMS-2
23,234 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT Module Three Phase Inverter 600 V 24 A 63 W Through Hole IMS-2
VS-CPV364M4KPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 24 A |
| Power - Max | 63 W |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 24A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 1.6 nF @ 30 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 19-SIP (13 Leads), IMS-2 |
| Supplier Device Package | IMS-2 |
| Base Product Number | CPV364 |
| Product Attribute |  |
 |
 |
 |
| Part Number | VS-CPV364M4FPBF | VS-CPV364M4UPBF | VS-CPV362M4FPBF | VS-CPV362M4KPBF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT MODULE 600V 27A 63W IMS-2 | IGBT MODULE 600V 20A 63W IMS-2 | IGBT MODULE 600V 8.8A 23W IMS-2 | IGBT MODULE 600V 3PHASE IMS-2 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
