VS-VS5HD600CW60

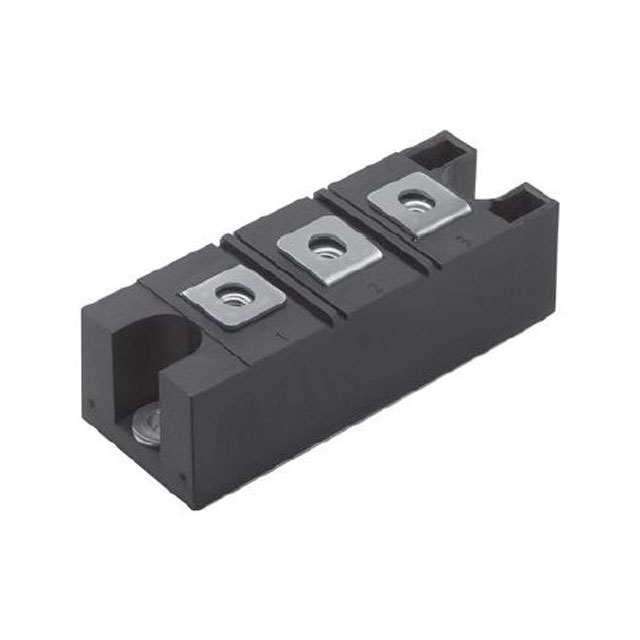

lmages are for reference only.VS-VS5HD600CW60
DIODE MODULE GP 600V 505A TO-244
DatasheetTO-244AB
29,469 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 600 V 505A (DC) Chassis Mount TO-244AB
VS-VS5HD600CW60
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | FRED Pt® |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) (per Diode) | 505A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 300 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 mA @ 600 V |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Mounting Type | Chassis Mount |
| Package / Case | TO-244AB |
| Supplier Device Package | TO-244 |
| Base Product Number | VS-VS5HD |
| Reverse Recovery Time (trr) | 78 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | VS-VS5HD240CW60 | VS-VS5HD300CW60 | VS-VS5HD480CW60 | VS-VSKC166/04PBF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MODULE GP 600V 229A TO-244 | DIODE MODULE GP 600V 259A TO-244 | DIODE MODULE GP 600V 448A TO-244 | DIODE MOD GP 400V 165A INTAPAK |
| Series | FRED Pt® | FRED Pt® | FRED Pt® | - |
| Packaging | Box | Box | Box | Bulk |
