XC6803B3D14R-G

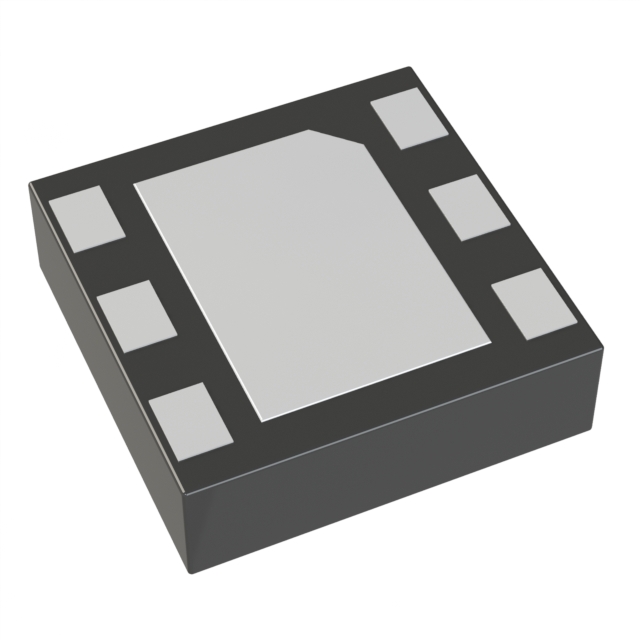

lmages are for reference only.XC6803B3D14R-G
IC BATT CHG LI-ION 1CELL 6USPEL
Datasheet6-XDFN Exposed Pad
54,784 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Charger IC Lithium Ion/Polymer 6-USPEL (1.8x2)
XC6803B3D14R-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Battery Chargers |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XC680x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Reverse Current |
| Charge Current - Max | 280mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XDFN Exposed Pad |
| Supplier Device Package | 6-USPEL (1.8x2) |
| Base Product Number | XC6803 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC6803B3E14R-G | XC6801A421ER-G | XC6801A421MR-G | XC6801A421PR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC BATT CHG LI-ION 1CELL 6USPEL | IC BATT CHG LI-ION 1CELL 6USPC | IC BATT CHG LI-ION 1CELL SOT25 | IC BATT CHG LI-ION 1CELL SOT89-5 |
| Series | XC680x | XC680x | XC680x | XC680x |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
