2302317-1
lmages are for reference only.2302317-1
RA ASSY, 7 ROW, CENT DP, MULTIGI
Datasheet-
92,362 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black MULTIGIG, Center
2302317-1
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MULTIGIG RT2-S |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | MULTIGIG, Center |
| Number of Positions | 112 |
| Number of Positions Loaded | All |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 7 |
| Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | 32 Signal Pairs, 8 Single Signal, 40 Ground |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | Black |
| Current Rating (Amps) | 1A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | 50VAC/DC |
| Base Product Number | 2302317 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 2302319-1 | 2302320-1 | 2302321-1 | 2302785-1 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |

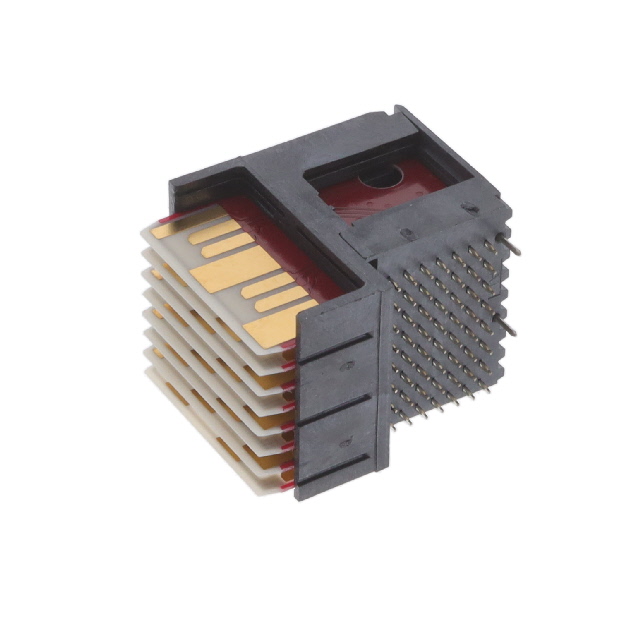

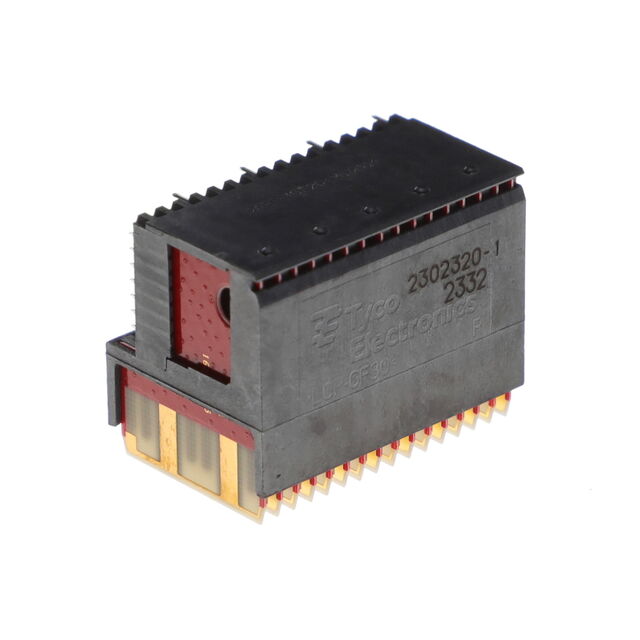

| Description | RA ASSY, CENT RP0, MULTIGIG RT 2 | RA ASSY, CENT RTM DP, MULTIGIG R | RA ASSY, LEFT HALF RTM, MULTIGIG | RA PLUG ASSY,7ROW,CENTER,VPX,MG |
| Series | MULTIGIG RT2-S | MULTIGIG RT2-S | - | MULTIGIG RT 3 |
| Packaging | Bulk | Tube | Tube | Tube |
