RA PLUG ASSY,7ROW,CENTER,VPX,MG
Datasheet-
96,389 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Center
2302785-1
| Category | Connectors, Interconnects - Backplane Connectors - Specialized |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | MULTIGIG RT 3 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Connector Usage | Daughtercard |
| Connector Type | Plug, Male Blades |
| Connector Style | VITA 46, Center |
| Number of Positions | 112 |
| Number of Positions Loaded | All |
| Pitch | 0.071" (1.80mm) |
| Number of Rows | 7 |
| Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit |
| Contact Layout, Typical | 32 Signal Pairs, 8 Single Signal, 40 Ground |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Color | Black |
| Current Rating (Amps) | 1A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | 166VAC/DC |
| Base Product Number | 2302785 |
| Product Attribute |  |
 |
 |
 |

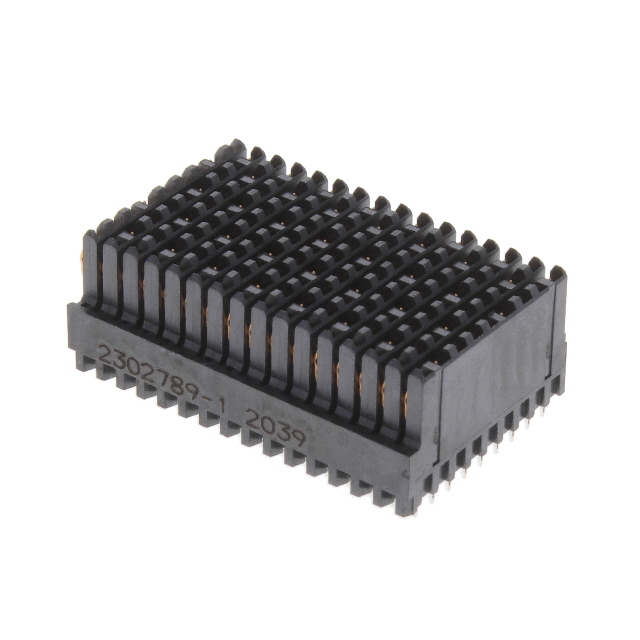

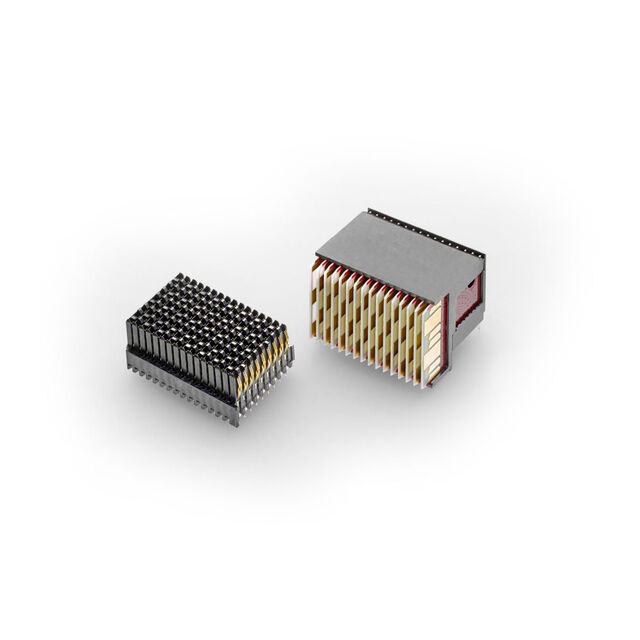

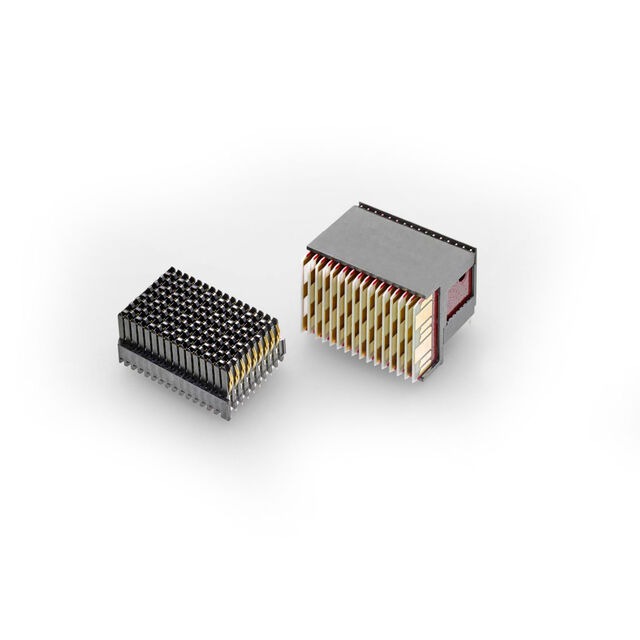

| Part Number | 2302788-1 | 2302789-1 | 2302317-1 | 2302319-1 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | VERTRECASSYLEFTEND HALF MGRT3 | VERTRECASSYCENTERMULTIGIG RT3 | RA ASSY, 7 ROW, CENT DP, MULTIGI | RA ASSY, CENT RP0, MULTIGIG RT 2 |
| Series | MULTIGIG RT 3 | MULTIGIG RT 3 | MULTIGIG RT2-S | MULTIGIG RT2-S |
| Packaging | Tube | Tube | Tube | Bulk |
