AUIRFN7107TR
lmages are for reference only.AUIRFN7107TR
AUIRFN7107 - 75V-100V N-CHANNEL
Datasheet8-PowerTDFN
52,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 75 V 14A (Ta), 75A (Tc) 4.4W (Ta), 125W (Tc) Surface Mount PQFN (5x6)
AUIRFN7107TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 45A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3001 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.4W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 77 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

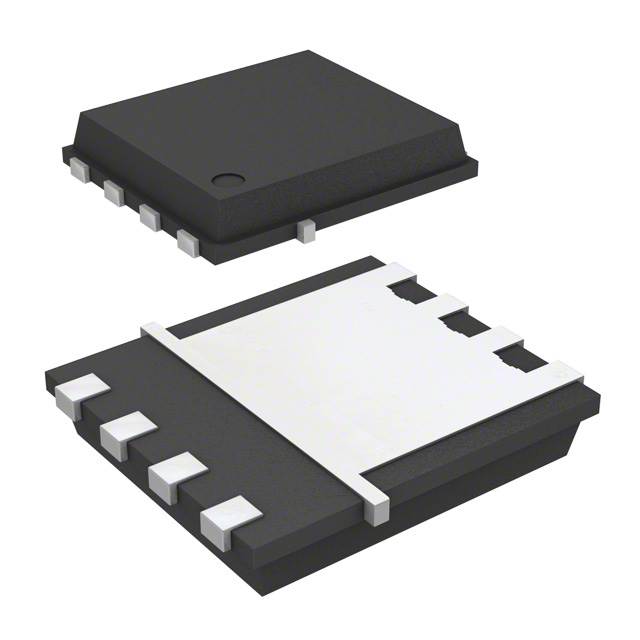

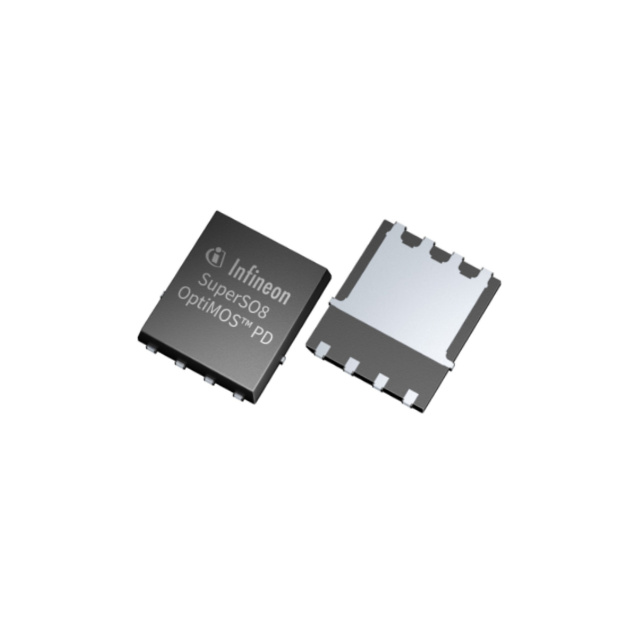

| Part Number | AUIRFN7107TR | AUIRFN7107TR | AUIRFN7110TR | AUIRFN8401TR |
| Manufacturer | International Rectifier | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | Not applicable | ROHS3 Compliant | ||
| Description | AUTOMOTIVE POWER MOSFET | MOSFET N-CH 75V 14A/75A PQFN | MOSFET N-CH 100V 58A 8PQFN | MOSFET N-CH 40V 84A PQFN |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
