Product CatalogPart Number
AUIRFN8401TR
Manufacturer
Infineon TechnologiesDescription
MOSFET N-CH 40V 84A PQFN
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
92,012 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AUIRFN8401TR
AUIRFN8401TR
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 84A (Tc) 4.2W (Ta), 63W (Tc) Surface Mount PQFN (5x6)
Quick Inquiry
AUIRFN8401TR
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 84A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 50µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2170 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.2W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | AUIRFN8401 |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

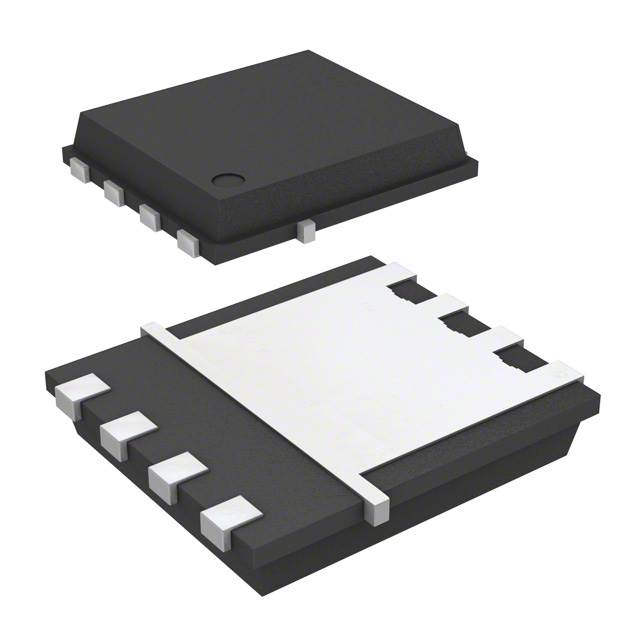

| Part Number | AUIRFN8403TR | AUIRFN8405TR | AUIRFN7107TR | AUIRFN7107TR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | International Rectifier |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | |
| Description | MOSFET N-CH 40V 95A 8PQFN | MOSFET N-CH 40V 95A PQFN | AUIRFN7107 - 75V-100V N-CHANNEL | AUTOMOTIVE POWER MOSFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
