CDLL750A/TR

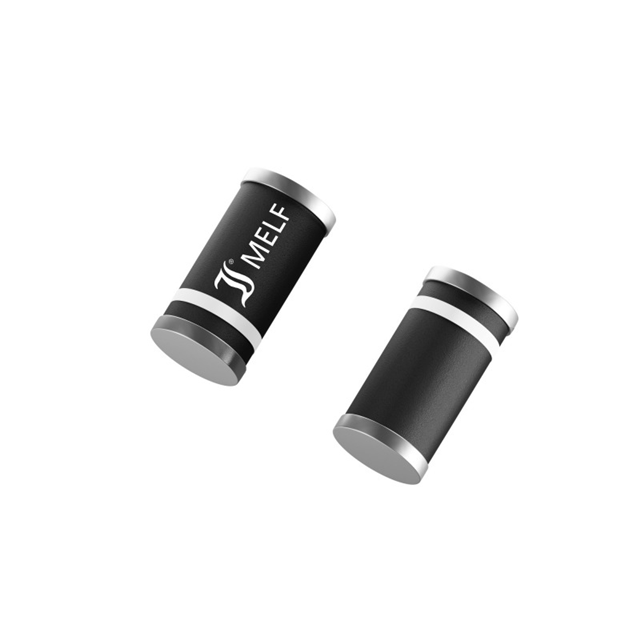

lmages are for reference only.CDLL750A/TR
DIODE ZENER 4.7V 500MW DO213AB
DatasheetDO-213AB, MELF
84,589 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 4.7 V 500 mW ±5% Surface Mount DO-213AB
CDLL750A/TR
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 4.7 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 19 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CDLL750A | CDLL746 | CDLL746A | CDLL746A/TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DIODE ZENER 4.7V 500MW DO213AB | DIODE ZENER 3.3V 500MW DO213AB | DIODE ZENER 3.3V 500MW DO213AB | DIODE ZENER 3.3V 500MW DO213AB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
