Product CatalogPart Number
CDLL750/TR
Manufacturer
Microchip TechnologyDescription
DIODE ZENER 4.7V 500MW DO213AB
Datasheet
DatasheetPackage
DO-213AB, MELF
In Stock
61,904 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CDLL750/TR
CDLL750/TR

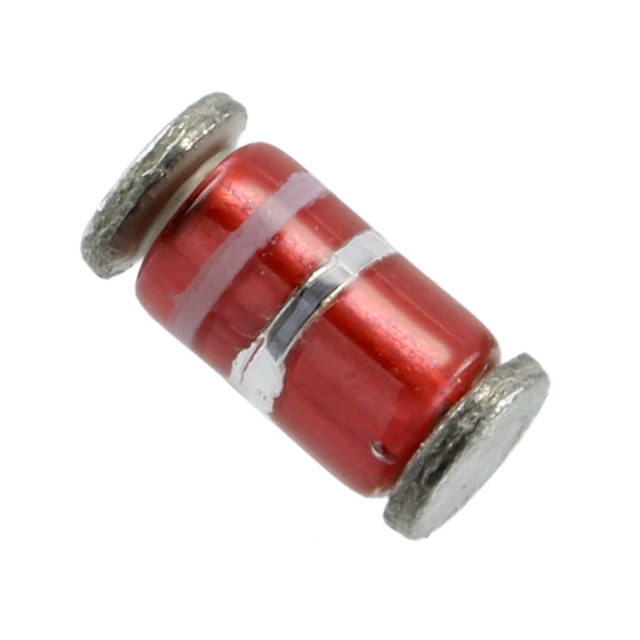

lmages are for reference only.Payment Methods
Delivery Services
Zener Diode 4.7 V 500 mW ±10% Surface Mount DO-213AB
Quick Inquiry
CDLL750/TR
Specifications
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 4.7 V |
| Tolerance | ±10% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 19 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | CDLL750 | CDLL750A | CDLL750A/TR | CDLL1W110 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | DIODE ZENER 4.7V 500MW DO213AB | DIODE ZENER 4.7V 500MW DO213AB | DIODE ZENER 4.7V 500MW DO213AB | DIODE ZENER 110V DO213AB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
