45V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 0201-A

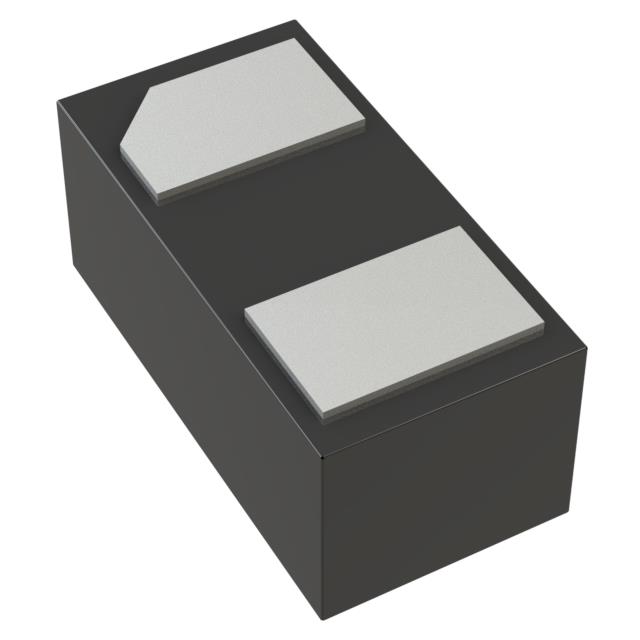

ESD24VAE2-TP
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 27V |
| Voltage - Clamping (Max) @ Ipp | 45V |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power - Peak Pulse | 90W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 10pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201-A |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ESD24VD3-TP | ESD24VD3A-TP | ESD24VD3BA-TP | ESD24VD3BHE3-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 24VWM SOD323 | ESD,24V,SOD-323 | ESD PROTECTION DEVICE | ESD,24V,SOD-323 |
| Series | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
