LP5521YQ/NOPB
lmages are for reference only.LP5521YQ/NOPB
IC LED DRVR RGLTR I2C 24WQFN
Datasheet24-VFQFN Exposed Pad
94,680 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 3 Output DC DC Regulator Switched Capacitor (Charge Pump) I2C Dimming 25.5mA 24-WQFN (5x4)
LP5521YQ/NOPB
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 3 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 4.55V |
| Current - Output / Channel | 25.5mA |
| Frequency | 1.25MHz |
| Dimming | I2C |
| Applications | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (5x4) |
| Base Product Number | LP5521 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LP5521YQX/NOPB | LP5009PWR | LP5009RUKR | LP5012PWR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

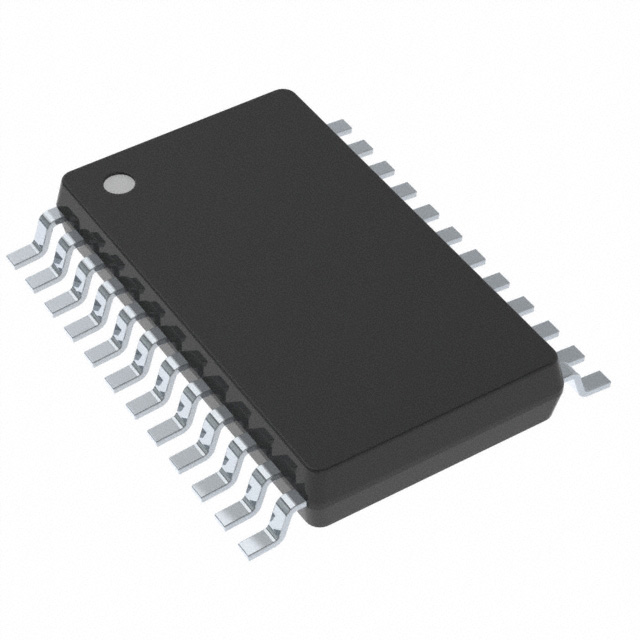

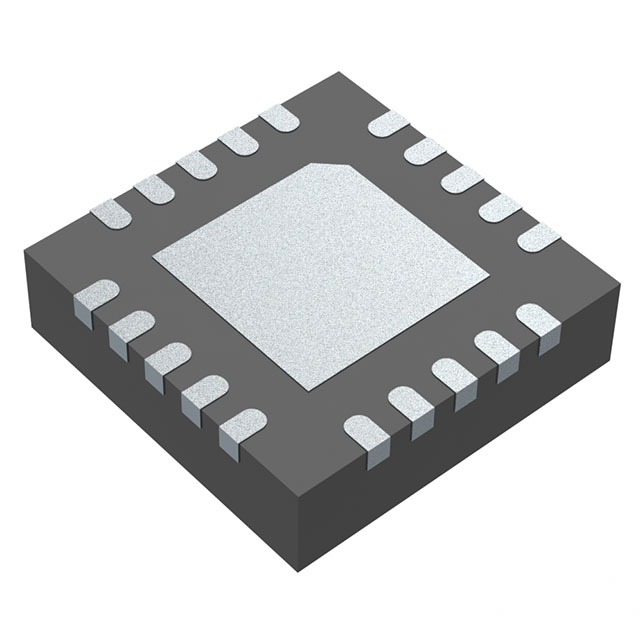

| Description | IC LED DRVR RGLTR I2C 24WQFN | IC LED DRVR LIN PWM 35MA 24TSSOP | IC LED DRVR LIN PWM 35MA 20WQFN | IC LED DRVR LIN PWM 35MA 24TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
