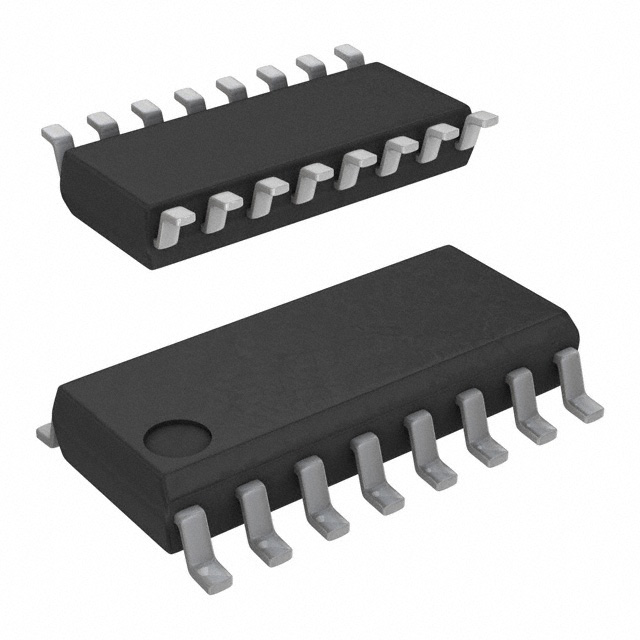

SI823H5CB-IS1R
lmages are for reference only.SI823H5CB-IS1R
DGTL ISO 2.5KV 2CH GT DVR 16SOIC
Datasheet16-SOIC (0.154", 3.90mm Width)
97,565 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
SI823H5CB-IS1R
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 125kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 58ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Current - Output High, Low | 4A, 4A |
| Current - Peak Output | 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 5.5V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | CQC, CSA, UL, VDE |
| Base Product Number | SI823 |
| Current - DC Forward (If) (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SI823H5CB-IM1 | SI823H5CB-IM1R | SI823H5CB-IS1 | SI823H5CB-AM1 |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | |||

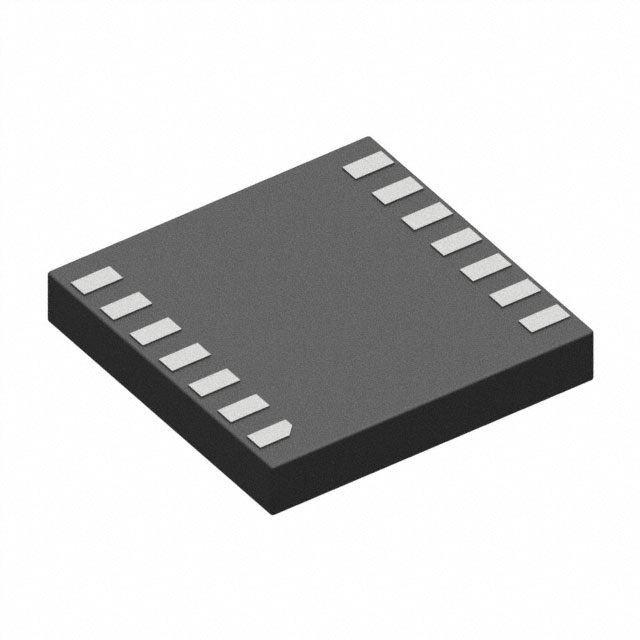

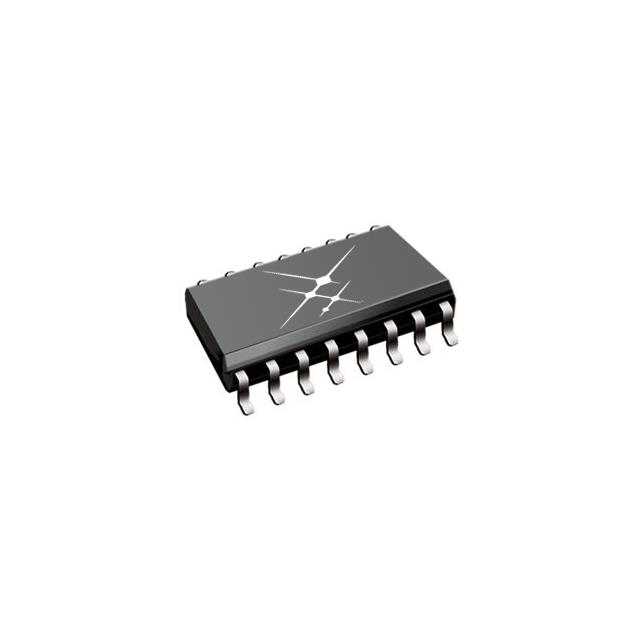

| Description | 5KV GATE DRIVER 14-QFN | DGTL ISO 2.5KV 2CH GT DVR 14QFN | DGTL ISO 2.5KV 2CH GT DVR 16SOIC | DGTL ISO 2.5KV 2CH GT DVR 14QFN |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Tray | Tape & Reel (TR) | Tube | Tray |
