XC6808B4D28R-G
lmages are for reference only.XC6808B4D28R-G
IC BATT CHG LI-ION 1CELL 6USP
Datasheet6-XDFN Exposed Pad
81,096 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Charger IC Lithium Ion/Polymer 6-USP-B07 (1.8x2)
XC6808B4D28R-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Battery Chargers |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XC680x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Reverse Current |
| Charge Current - Max | 40mA |
| Battery Pack Voltage | 4.35V |
| Voltage - Supply (Max) | 6V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XDFN Exposed Pad |
| Supplier Device Package | 6-USP-B07 (1.8x2) |
| Base Product Number | XC6808 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

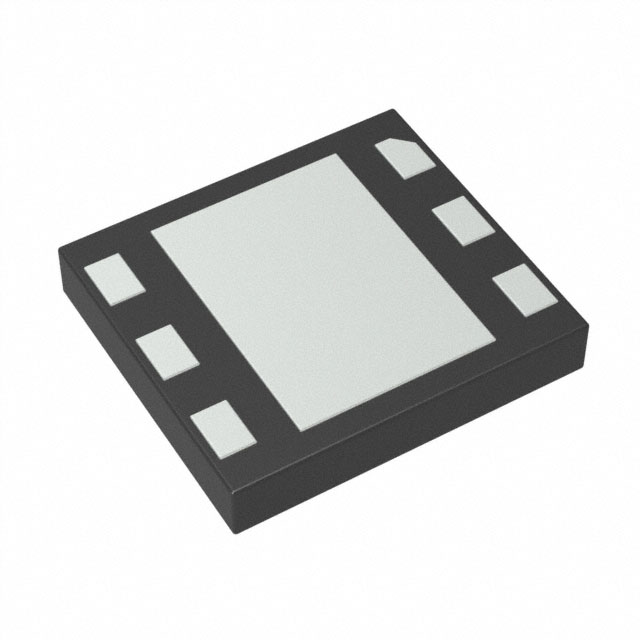

| Part Number | XC6808B4C18R-G | XC6808B4C28R-G | XC6808B4C38R-G | XC6808B4C48R-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC BATT CHG LI-ION 1CELL 6USP | IC BATT CHG LI-ION 1CELL 6USP | IC BATT CHG LI-ION 1CELL 6USP | IC BATT CHG LI-ION 1CELL 6USP |
| Series | XC680x | XC680x | XC680x | XC680x |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
