VS-GP100TS60SFPBF

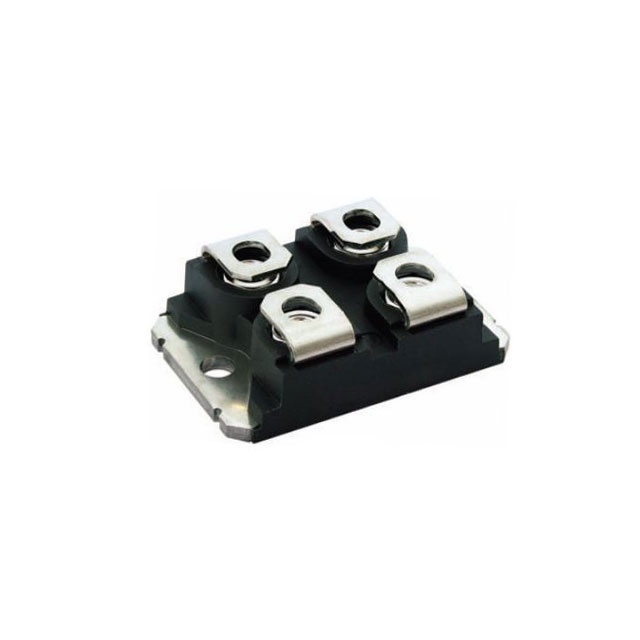

lmages are for reference only.VS-GP100TS60SFPBF
IGBT MOD 600V 337A INT-A-PAK
DatasheetINT-A-Pak
79,263 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT Module PT, Trench Half Bridge 600 V 337 A 781 W Chassis Mount INT-A-PAK
VS-GP100TS60SFPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | PT, Trench |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 337 A |
| Power - Max | 781 W |
| Vce(on) (Max) @ Vge, Ic | 1.34V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 150 µA |
| Input Capacitance (Cies) @ Vce | - |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | INT-A-Pak |
| Supplier Device Package | INT-A-PAK |
| Base Product Number | GP100 |
| Product Attribute | |
 |
|
|
| Part Number | VS-150MT060WDF | VS-CPV364M4KPBF | VS-25MT060WFAPBF | VS-GT55NA120UX |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT MOD 600V 138A 12MTP PRESS | IGBT MODULE 600V 24A 63W IMS-2 | IGBT MODULE 600V 69A 195W MTP | SOT-227 - HIGH SIDE CHOPPER IGBT |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tray | Tube |
