Product CatalogUnderstanding the TXD2-3V Relay-Features-Applications-and Selection Guide
2025-04-26
Introduction
The TXD2-3V relay is High Breakdown Voltage Relay with high sensitivity, reliability, and robust construction. Let’s learning the key features, typical applications, packing style, and selection criteria for the TXD2-3V Panasonic relay.
TXD2-3V Relay Features
For high-performance applications,suitable for industrial, automotive, telecommunications, and consumer electronics.
1. Complies with EN60950 Supplementary Insulation Standards
Meet the EN60950 safety standard, ensuring sufficient insulation between the coil and contacts. This compliance is crucial for preventing electrical hazards in high-voltage applications.
• Clearances: 2.0 mm .079 inch or more
• Creepage distance: 2.5 mm .098 inch or more
2. High Breakdown Voltage (3,000 V Between Contact and Coil)
With a 3,000 V breakdown voltage between contact and coil. The body block construction of the coil that is sealed formation.
3. High Sensitivity (200 mW Nominal Operating Power)
Use highly efficient polar magnetic circuit “seesaw balance mechanism”. Achieve a nominal operating power of 200 mW.
4. High Contact Capacity (2 A, 30 V DC)
5. Gold-Clad Crossbar Twin Contacts for Superior Reliability
The relay features gold-clad crossbar twin contacts, ensuring low contact resistance, minimal arcing, and long-term reliability. Additionally, gas-expelling materials during manufacturing enhance durability by preventing oxidation.
6. Exceptional Vibration and Shock Resistance
Functional shock resistance: 750 m/s
Destructive shock resistance: 1,000 m/s
Functional vibration resistance: 10 to 55 Hz (at double amplitude of 3.3 mm .130 inch)
Destructive vibration resistance: 10 to 55 Hz (at double amplitude of 5 mm .197 inch)
7. Sealed Construction for Automatic Washing

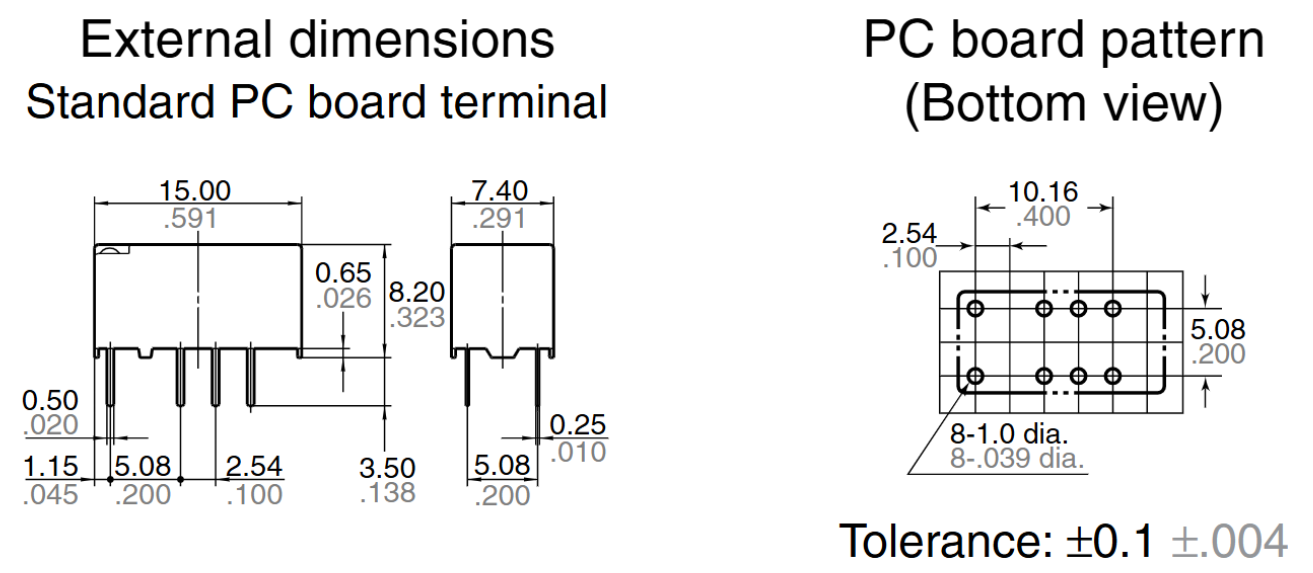

TXD2-3V Relay Dimensions
FAQ 1: What Are the Typical Applications of the TXD2-3V Relay?
The TXD2-3V relay is highly versatile and can be used across multiple industries. Below are some of its most common applications:
1. Facsimile
2. Modem
3.Communications (xDSL)
4. Medical equipment
5. Security
FAQ 2: What Is the Packing Style of the TXD2-3V Relay?
In tube packaging, which ensures safe handling and transportation.
Key details include:

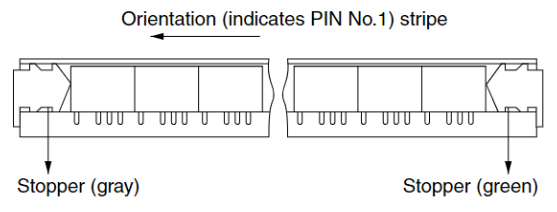

· Orientation Mark: The relay is packed in a tube with an orientation mark on the left side, ensuring correct placement during PCB assembly.
· Protection: Tube packing prevents damage to the relay’s pins and casing during shipping.
· Ease of Use: The tube format is compatible with automated pick-and-place machines, making it ideal for high-volume manufacturing.
FAQ 3: How to Choose a Similar Relay to the TXD2-3V?
If you need an alternative TXD2-3V, consider the following factors when selecting a replacement:
1. Electrical Specifications
· Coil Voltage ,Contact Rating and Sensitivity
2. Safety and Compliance
· Meets EN60950 or other relevant safety standards for insulation.
3. Contact Material and Reliability
· With gold-clad or silver alloy contacts.
4. Mechanical Durability
5. Packaging and Mounting
· Check if the relay has the same PCB footprint and packaging style (tube, tape & reel) for compatibility with assembly processes.
Recommended Alternatives Part Number

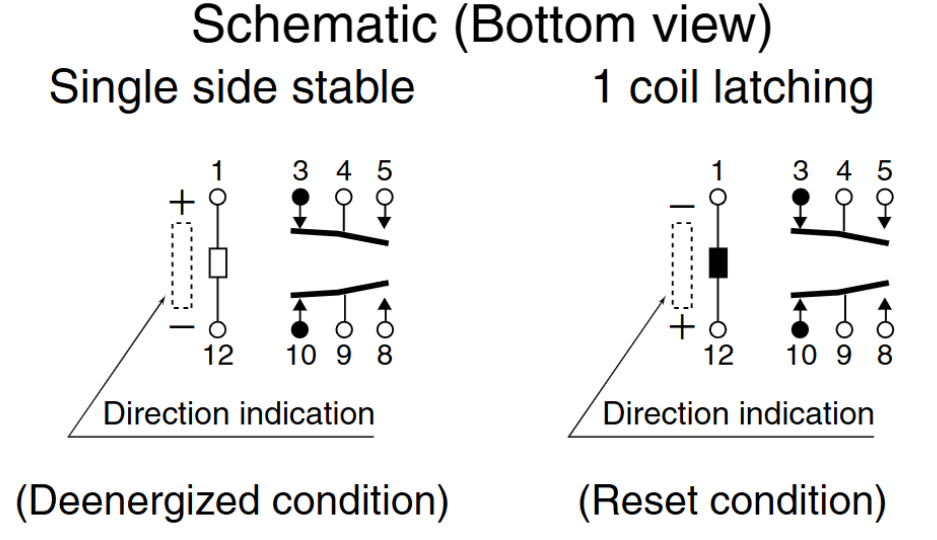

1. Standard (B.B.M.) type
1) Standard PC board terminal
Contact arrangement | Nominal coil voltage | Single side stable | 1 coil latching |
Part No. | Part No. | ||
2 Form C | 3V DC | TXD2-3V | TXD2-L-3V |
4.5V DC | TXD2-4.5V | TXD2-L-4.5V | |
5V DC | TXD2-5V | TXD2-L-5V | |
6V DC | TXD2-6V | TXD2-L-6V | |
9V DC | TXD2-9V | TXD2-L-9V | |
12V DC | TXD2-12V | TXD2-L-12V | |
24V DC | TXD2-24V | TXD2-L-24V |
Standard packing: Tube: 40 pcs.; Case: 1,000 pcs.
2) Surface-mount terminal
(1) Tube packing
Contact arrangement | Nominal coil voltage | Single side stable | 1 coil latching |
Part No. | Part No. | ||
2 Form C | 3V DC | TXD2SA-3V | TXD2SA-L-3V |
4.5V DC | TXD2SA-4.5V | TXD2SA-L-4.5V | |
5V DC | TXD2SA-5V | TXD2SA-L-5V | |
6V DC | TXD2SA-6V | TXD2SA-L-6V | |
9V DC | TXD2SA-9V | TXD2SA-L-9V | |
12V DC | TXD2SA-12V | TXD2SA-L-12V | |
24V DC | TXD2SA-24V | TXD2SA-L-24V |
(2)Tape and reel packing
Contact arrangement | Nominal coil voltage | Single side stable | 1 coil latching |
Part No. | Part No. | ||
2 Form C | 3V DC | TXD2SA-3V-Z | TXD2SA-L-3V-Z |
4.5V DC | TXD2SA-4.5V-Z | TXD2SA-L-4.5V-Z | |
5V DC | TXD2SA-5V-Z | TXD2SA-L-5V-Z | |
6V DC | TXD2SA-6V-Z | TXD2SA-L-6V-Z | |
9V DC | TXD2SA-9V-Z | TXD2SA-L-9V-Z | |
12V DC | TXD2SA-12V-Z | TXD2SA-L-12V-Z | |
24V DC | TXD2SA-24V-Z | TXD2SA-L-24V-Z |
Standard packing: Tape and reel: 500 pcs.; Case: 1,000 pcs.
2. M.B.B type
1) Standard PC board terminal
Contact arrangement | Nominal coil voltage | Single side stable |
Part No. | ||
2 Form C | 3V DC | TXD2-2M-3V |
4.5V DC | TXD2-2M-4.5V | |
5V DC | TXD2-2M-5V | |
6V DC | TXD2-2M-6V | |
9V DC | TXD2-2M-9V | |
12V DC | TXD2-2M-12V | |
24V DC | TXD2-2M-24V |
Standard packing: Tube: 40 pcs.; Case: 1,000 pcs.
2) Surface-mount terminal
(1) Tube packing
Contact arrangement | Nominal coil voltage | Single side stable |
Part No. | ||
2 Form C | 3V DC | TXD2SA-2M-3V |
4.5V DC | TXD2SA-2M-4.5V | |
5V DC | TXD2SA-2M-5V | |
6V DC | TXD2SA-2M-6V | |
9V DC | TXD2SA-2M-9V | |
12V DC | TXD2SA-2M-12V | |
24V DC | TXD2SA-2M-24V |
(2) Tape and reel packing
Contact arrangement | Nominal coil voltage | Single side stable |
Part No. | ||
2 Form C | 3V DC | TXD2SA-2M-3V-Z |
4.5V DC | TXD2SA-2M-4.5V-Z | |
5V DC | TXD2SA-2M-5V-Z | |
6V DC | TXD2SA-2M-6V-Z | |
9V DC | TXD2SA-2M-9V-Z | |
12V DC | TXD2SA-2M-12V-Z | |
24V DC | TXD2SA-2M-24V-Z |
