Product CatalogPart Number
0.2US12-P0.1-WS
Manufacturer
ULTRAVOLT / Advanced EnergyDescription
DC DC CONVERTER 200V
Datasheet
DatasheetPackage
6-SIP Module
In Stock
40,886 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0.2US12-P0.1-WS
0.2US12-P0.1-WS

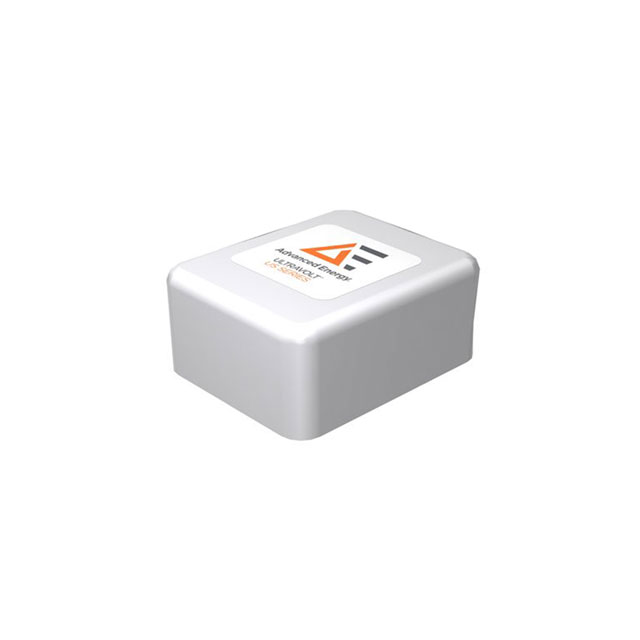

lmages are for reference only.Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 200V 500µA 11.5V - 12.5V Input
Quick Inquiry
0.2US12-P0.1-WS
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | ULTRAVOLT® US |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11.5V |
| Voltage - Input (Max) | 12.5V |
| Voltage - Output 1 | 200V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500µA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -10°C ~ 65°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Size / Dimension | 1.00" L x 0.81" W x 0.43" H (25.5mm x 20.5mm x 11.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus |
| Standard Number | - |
| Base Product Number | 0.2US12 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0.2US12-P0.1 | 0.2US12-N0.1 | 0.2US12-N0.1-WS | 0.2US5-N0.1-WS |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 200V | DC DC CONVERTER 200V | DC DC CONVERTER 200V | DC DC CONVERTER 200V |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
