0.3US5-N0.1

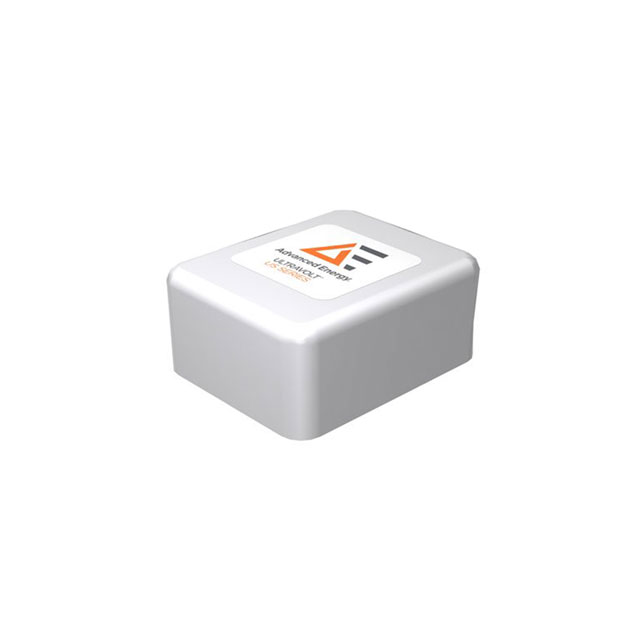

lmages are for reference only.0.3US5-N0.1
DC DC CONVERTER 300V
Datasheet12-DIP Module, 7 Leads
56,593 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 300V 330µA 4.5V - 5.5V Input
0.3US5-N0.1
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | ULTRAVOLT® US |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 300V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 330µA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -10°C ~ 65°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-DIP Module, 7 Leads |
| Size / Dimension | 1.00" L x 0.81" W x 0.43" H (25.5mm x 20.5mm x 11.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE, cURus |
| Standard Number | - |
| Base Product Number | 0.3US5 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0.3US5-N0.1-WS | 0.3US12-N0.1 | 0.3US12-N0.1-WS | 0.3US12-P0.1 |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 300V | DC DC CONVERTER 300V | DC DC CONVERTER 300V | DC DC CONVERTER 300V |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
