0.5T8A_0509S3UP

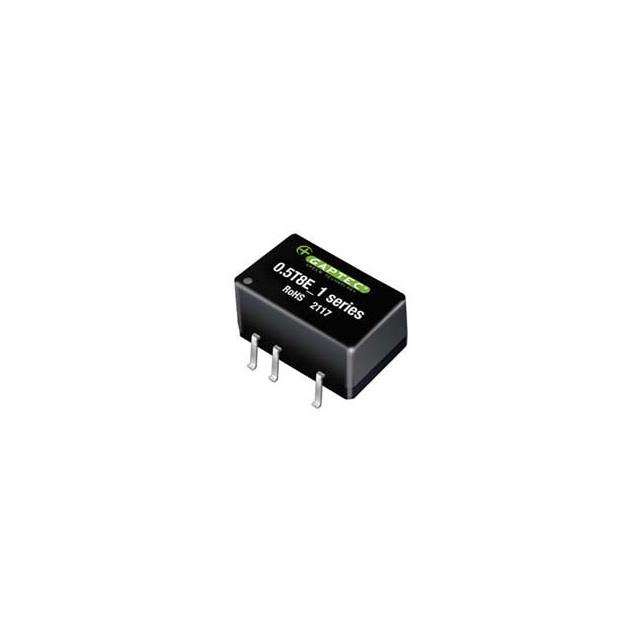

lmages are for reference only.0.5T8A_0509S3UP
ISOLATED MODULE DC DC CONVERTERS
Datasheet14-SMD Module, 5 Leads
35,310 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 55.5mA 4.5V - 5.5V Input
0.5T8A_0509S3UP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 0.5T8A_3UP (500mW) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 55.5mA |
| Power (Watts) | 499 mW |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 74% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 5 Leads |
| Size / Dimension | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0.5T8A_0503S3UP | 0.5T8A_0505S3UP | 0.5T8A_0512S3UP | 0.5T8A_0515S3UP |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Tube | Tube | Tube | Tube |
