0001.1001.TR

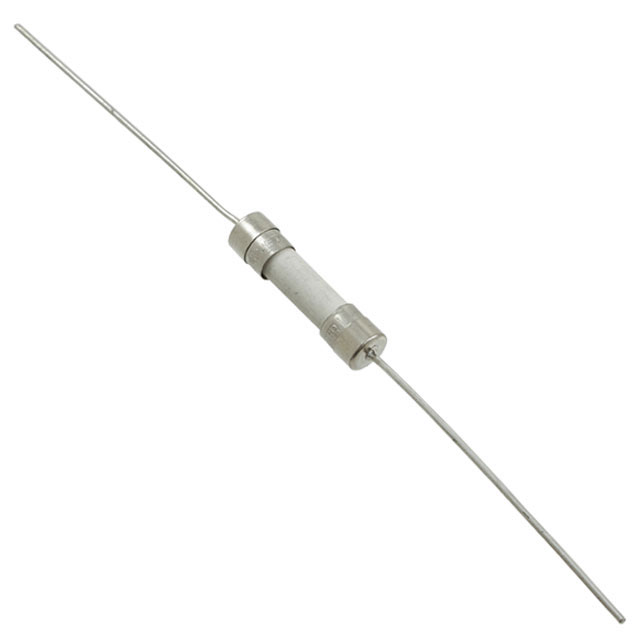

lmages are for reference only.0001.1001.TR
FUSE CERAMIC 500MA 250VAC 5X20MM
Datasheet5mm x 20mm (Axial)
35,979 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500 mA 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
0001.1001.TR
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | SP 5x20 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | - |
| Response Time | Fast Blow |
| Package / Case | 5mm x 20mm (Axial) |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Melting I²t | 0.098 |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) |
| Base Product Number | 0001.1001 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0001.1005.TR | 0001.1007.TR | 0001.1010.TR | 0001.1012.TR |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CERAMIC 1.25A 250VAC 5X20MM | FUSE CERAMIC 2A 250VAC 5X20MM | FUSE CERAMIC 4A 250VAC 5X20MM | FUSE CERAMIC 6.3A 250VAC 5X20MM |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
