Product CatalogPart Number
0010883042
Manufacturer
MolexDescription
CONN HEADER R/A 4POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
63,009 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0010883042
0010883042
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Quick Inquiry
0010883042
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | C-Grid 70216 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.320" (8.13mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyester, Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Base Product Number | 001088 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

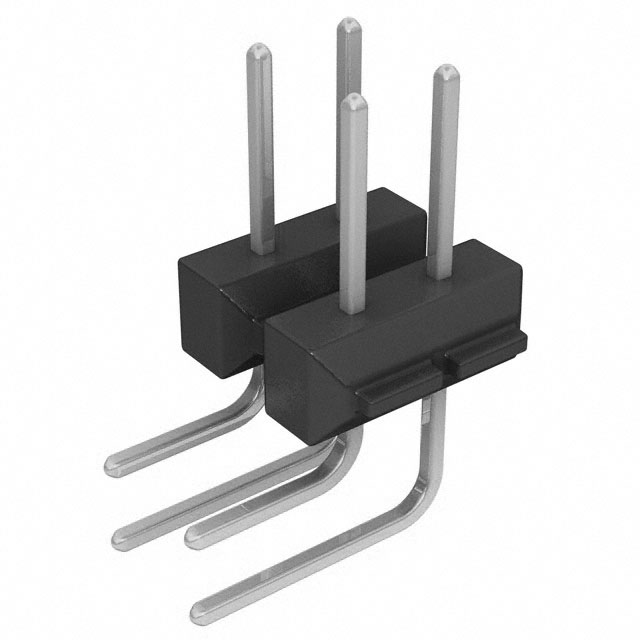

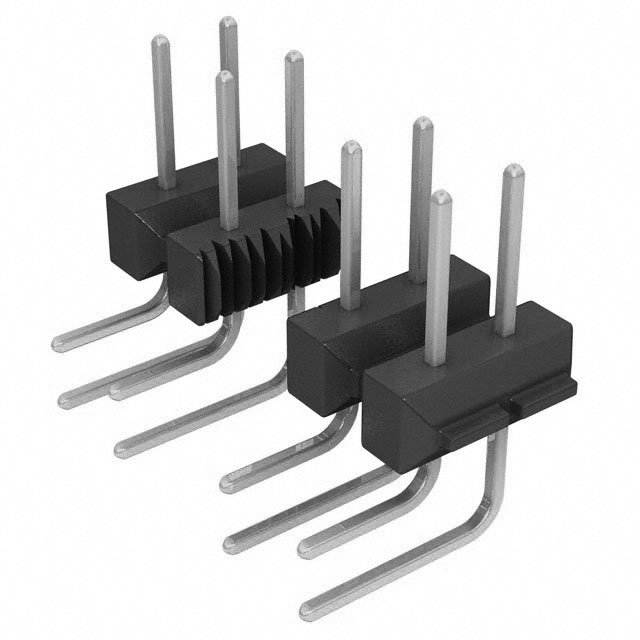

| Part Number | 0010883041 | 0010883061 | 0010883081 | 0010883101 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER R/A 4POS 2.54MM | CONN HEADER R/A 6POS 2.54MM | CONN HEADER R/A 8POS 2.54MM | CONN HEADER R/A 10POS 2.54MM |
| Series | C-Grid 70216 | C-Grid 70216 | C-Grid 70216 | C-Grid 70216 |
| Packaging | Tube | Tube | Tube | Tube |
