Product CatalogPart Number
0022102104
Manufacturer
MolexDescription
CONN HEADER VERT 10POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
41,013 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0022102104
0022102104

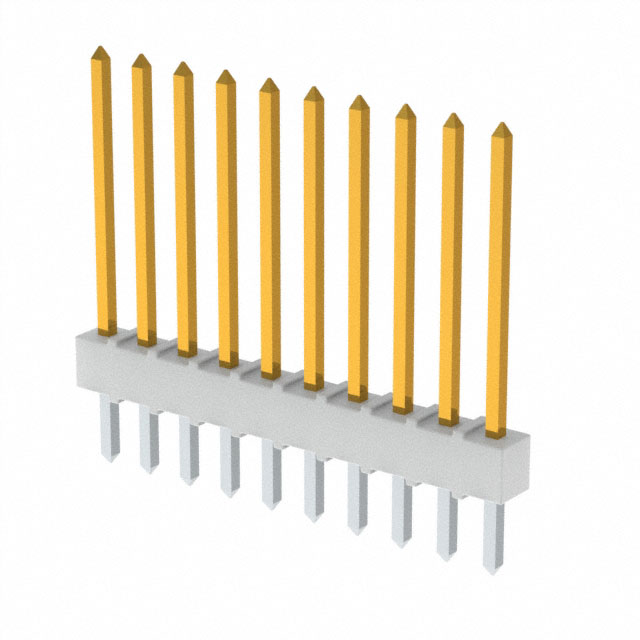

lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 10 position 0.100" (2.54mm)
Quick Inquiry
0022102104
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | KK254, 4030 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.560" (14.22mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | 0.840" (21.34mm) |
| Insulation Height | 0.130" (3.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Base Product Number | 002210 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

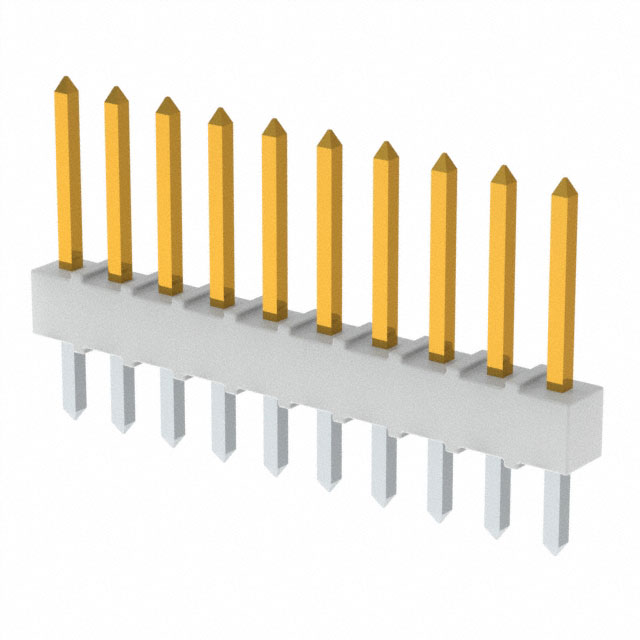

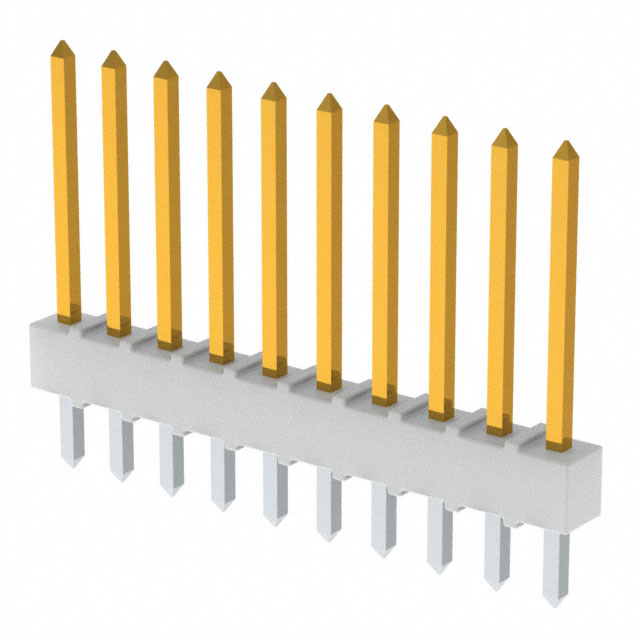

| Part Number | 0022102101 | 0022102102 | 0022102021 | 0022102022 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 10POS 2.54MM | CONN HEADER VERT 10POS 2.54MM | CONN HEADER VERT 2POS 2.54MM | CONN HEADER VERT 2POS 2.54MM |
| Series | KK254, 4030 | KK254, 4030 | KK254, 4030 | KK254, 4030 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

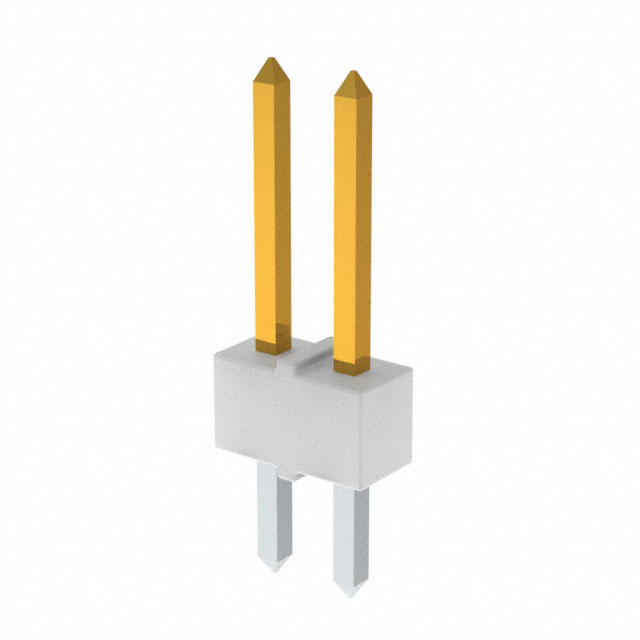

0022102021
Molex

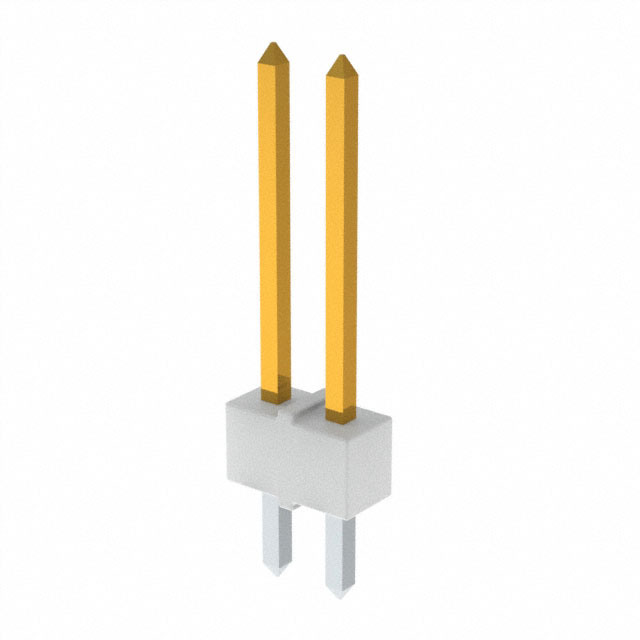

0022102022
Molex

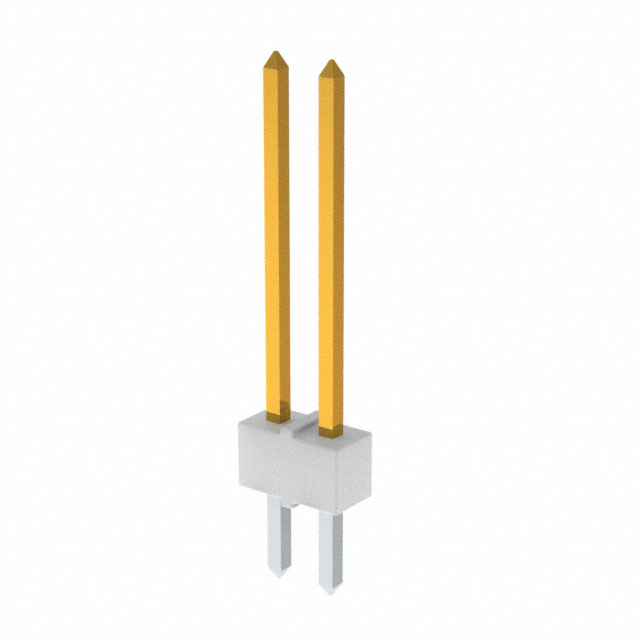

0022102024
Molex

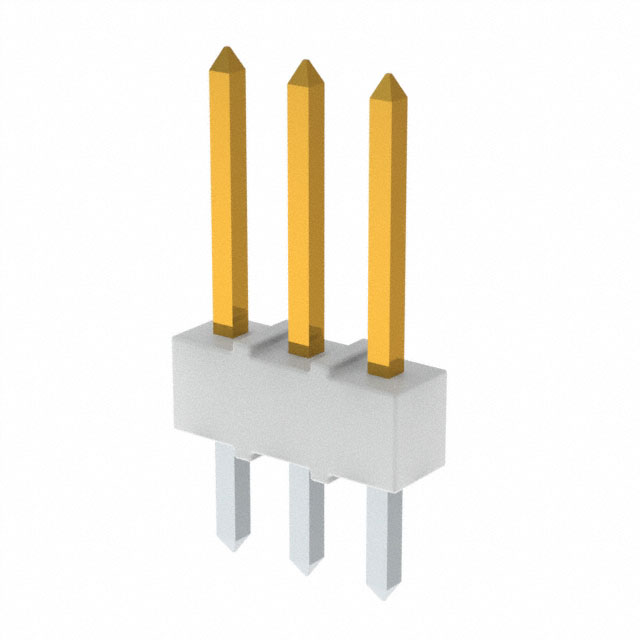

0022102031
Molex

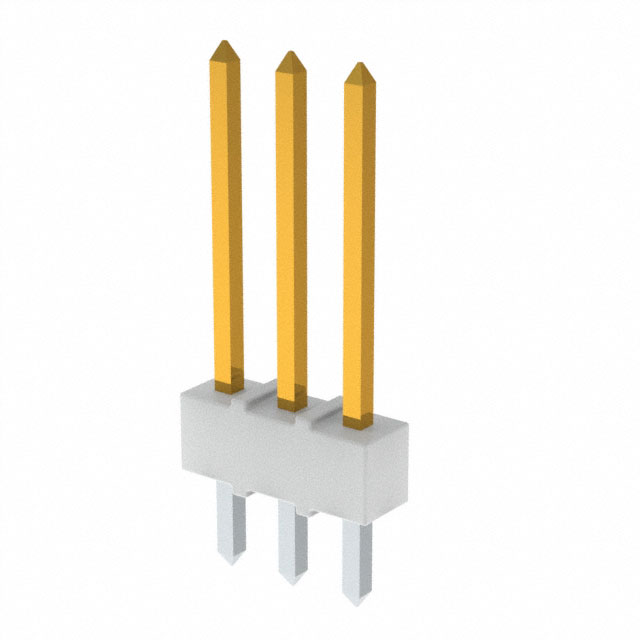

0022102032
Molex

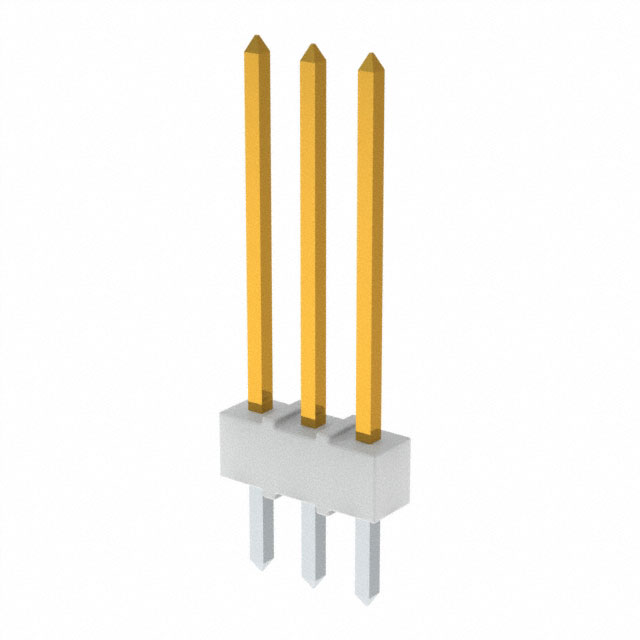

0022102034
Molex

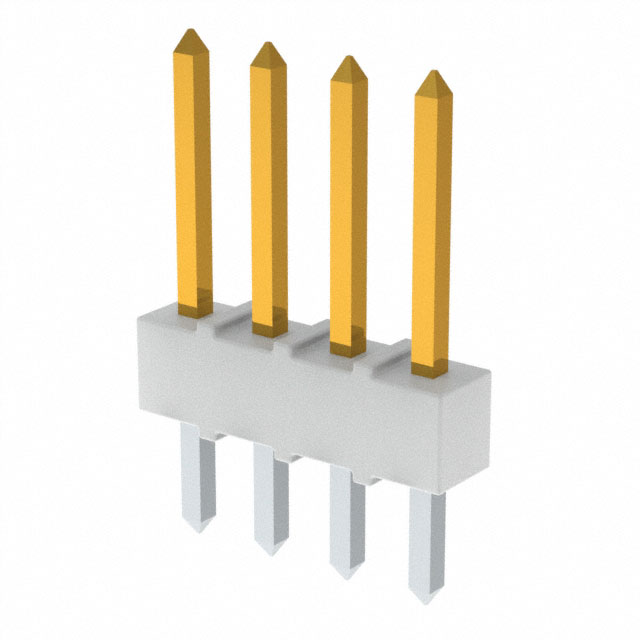

0022102041
Molex

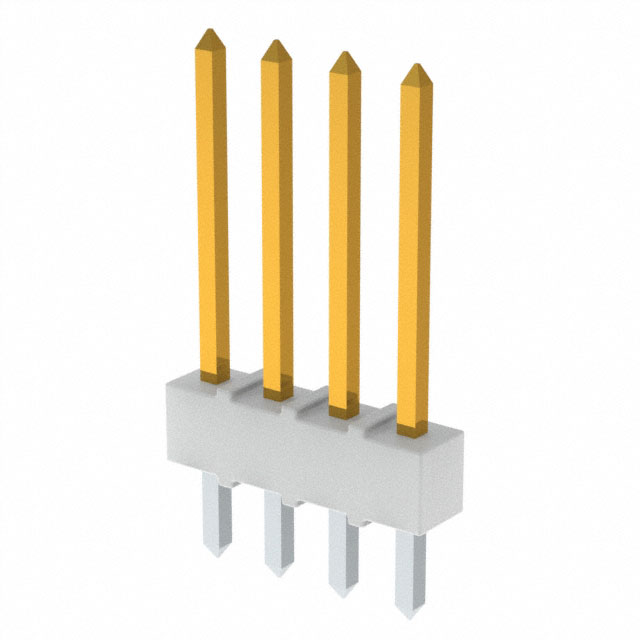

0022102042
Molex
0022102044
Molex

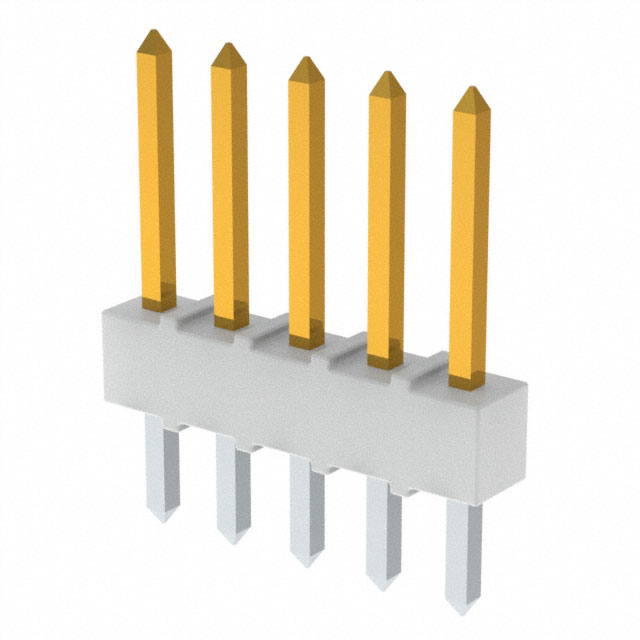

0022102051
Molex

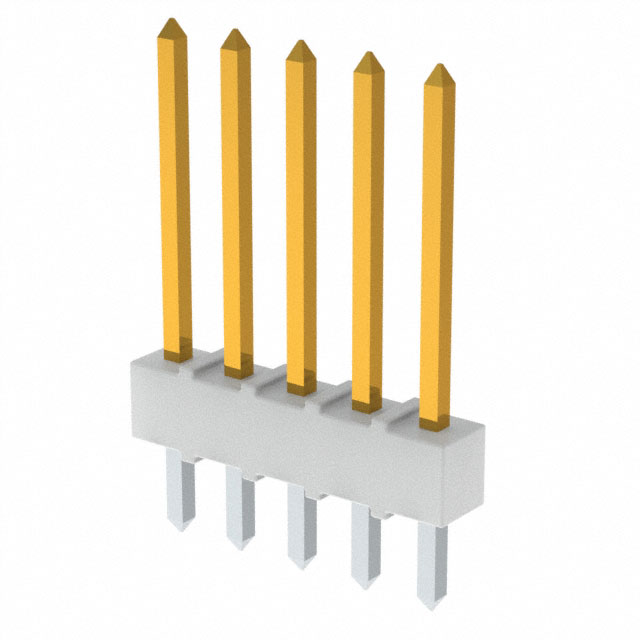

0022102052
Molex

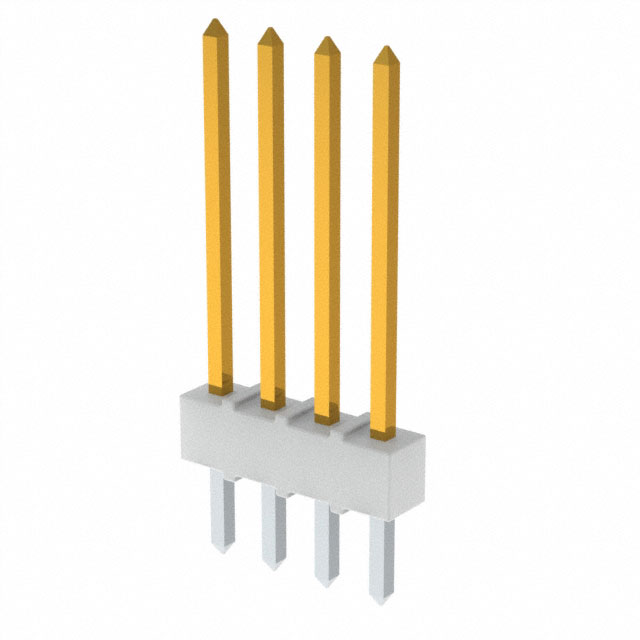

0022102054
Molex

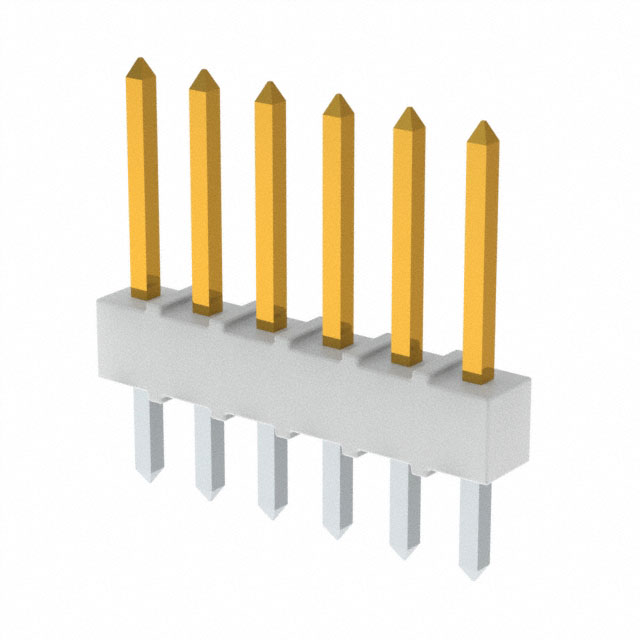

0022102061
Molex
0022102064
Molex

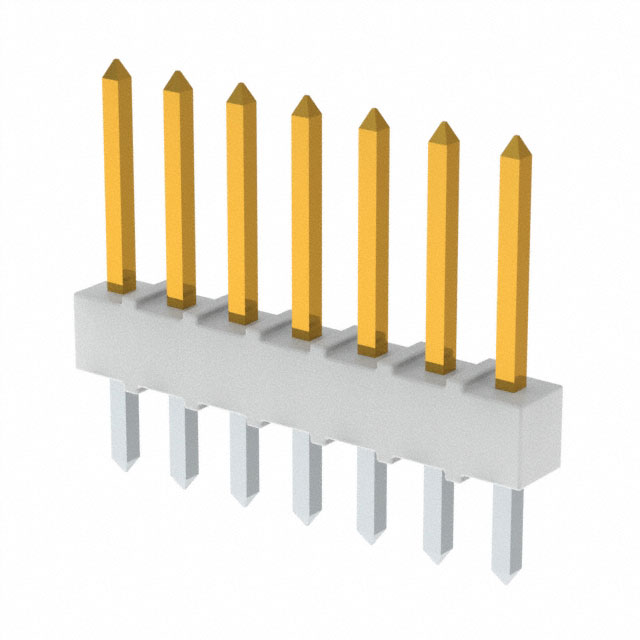

0022102071
Molex

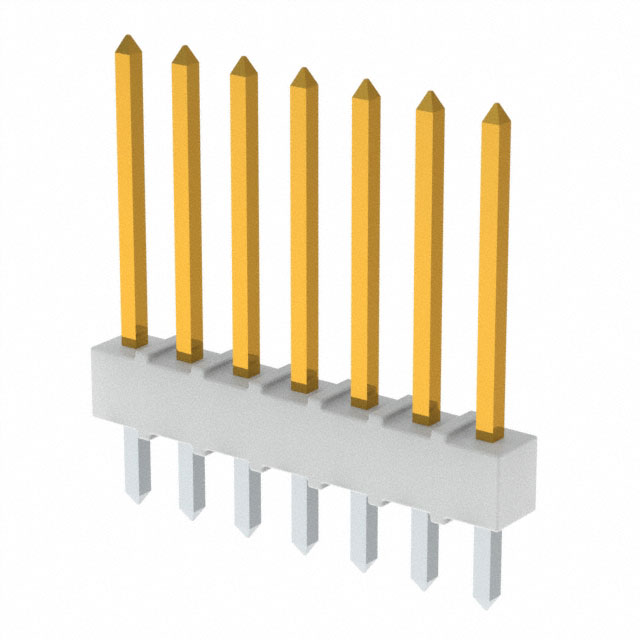

0022102072
Molex

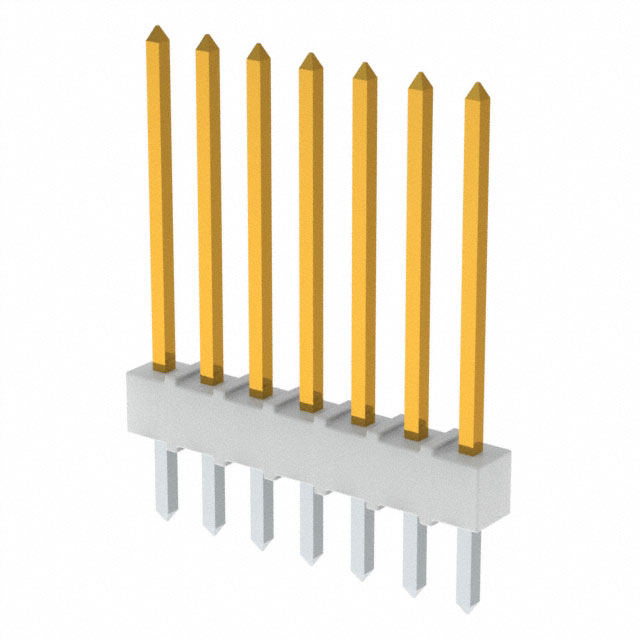

0022102074
Molex

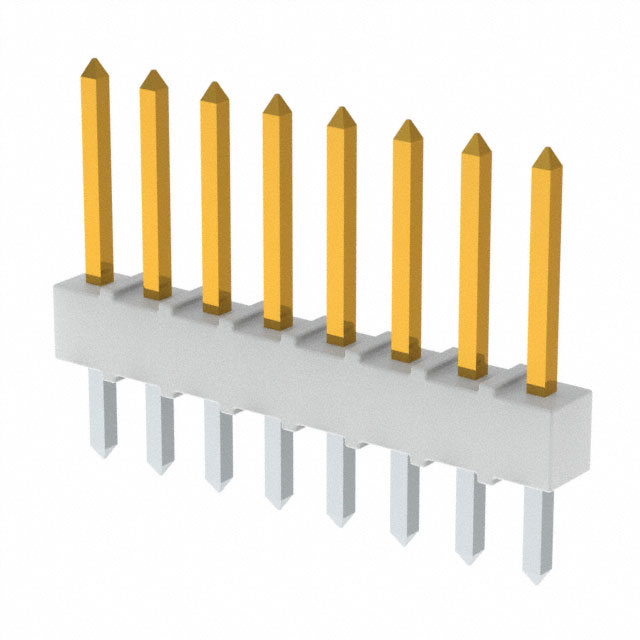

0022102081
