Product CatalogPart Number
0022292041
Manufacturer
MolexDescription

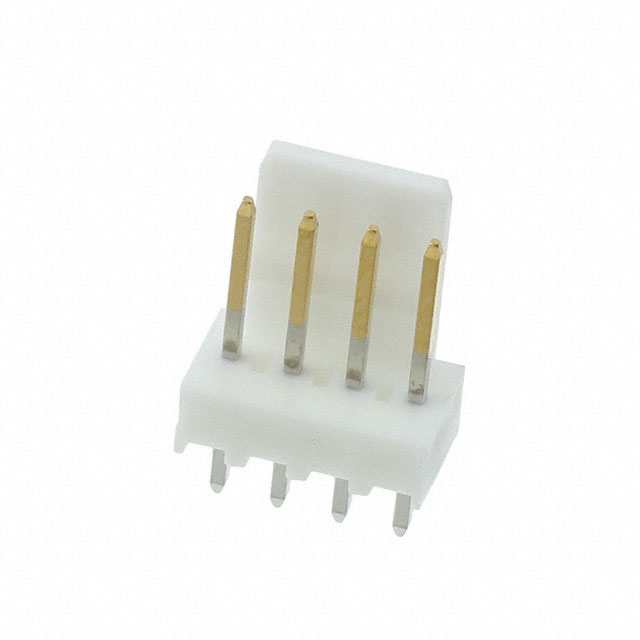

CONN HEADER VERT 4POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
47,912 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0022292041
0022292041
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 4 position 0.100" (2.54mm)
Quick Inquiry
0022292041
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | KK254, 6410 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.295" (7.49mm) |
| Contact Length - Post | 0.140" (3.56mm) |
| Overall Contact Length | 0.560" (14.22mm) |
| Insulation Height | 0.461" (11.70mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Base Product Number | 002229 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0022292021 | 0022292031 | 0022292051 | 0022292061 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

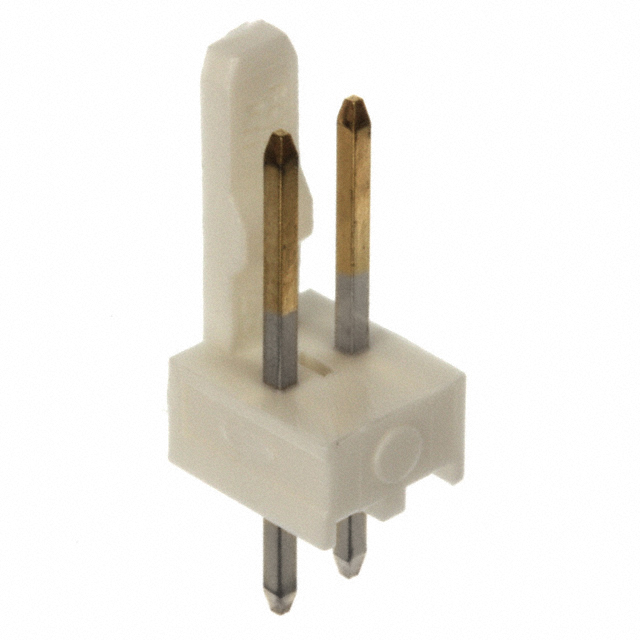

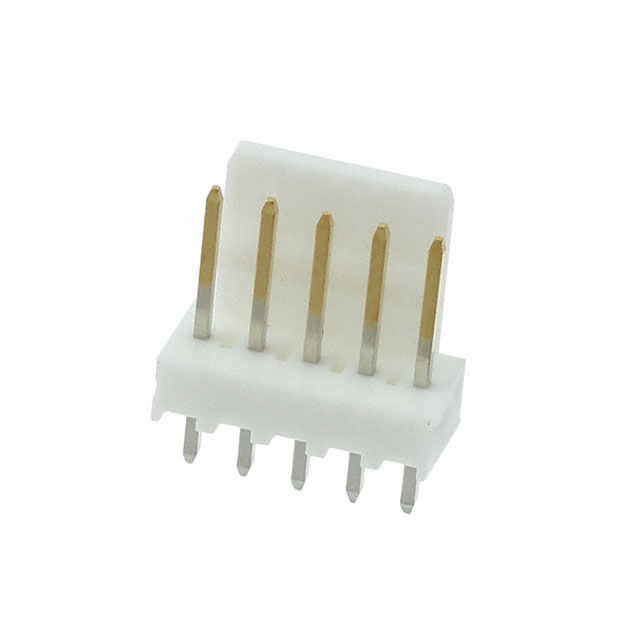

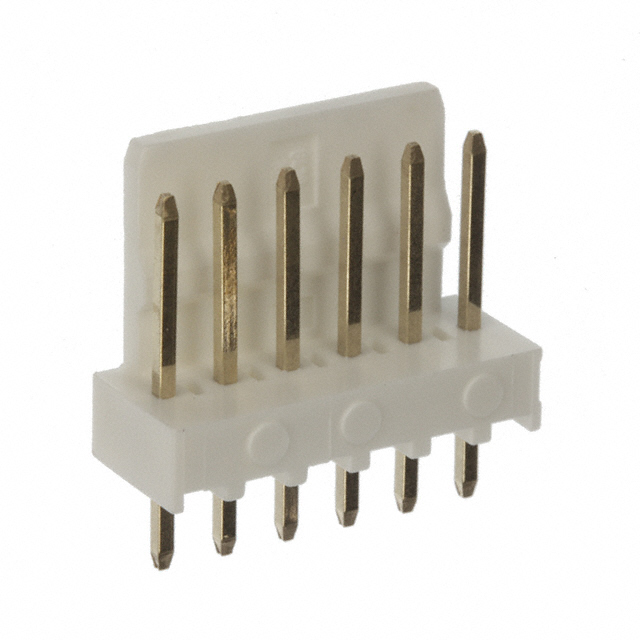

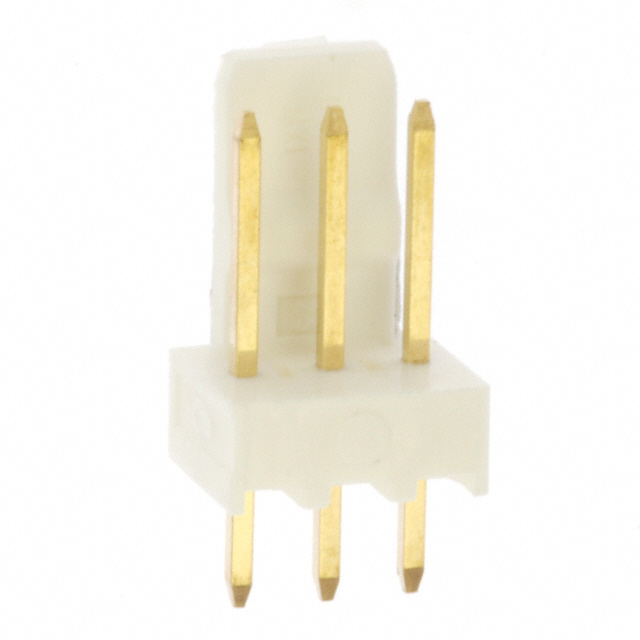

| Description | CONN HEADER VERT 2POS 2.54MM | CONN HEADER VERT 3POS 2.54MM | CONN HEADER VERT 5POS 2.54MM | CONN HEADER VERT 6POS 2.54MM |
| Series | KK254, 6410 | KK254, 6410 | KK254, 6410 | KK254, 6410 |
| Packaging | Bulk | Bag | Bulk | Bulk |
