0034.6820
lmages are for reference only.0034.6820
FUSE BRD MNT 3.15A 250VAC 125VDC
DatasheetRadial, Can, Vertical
58,132 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.15 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
0034.6820
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | MST 250 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 3.15 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Response Time | Slow Blow |
| Package / Case | Radial, Can, Vertical |
| Breaking Capacity @ Rated Voltage | 35A AC, 50A DC |
| Melting I²t | 76.0 |
| Approval Agency | CCC, cURus, KC, PSE/JET, VDE |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) |
| Base Product Number | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0034.6821 | 0034.6822 | 0034.6823 | 0034.6030 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

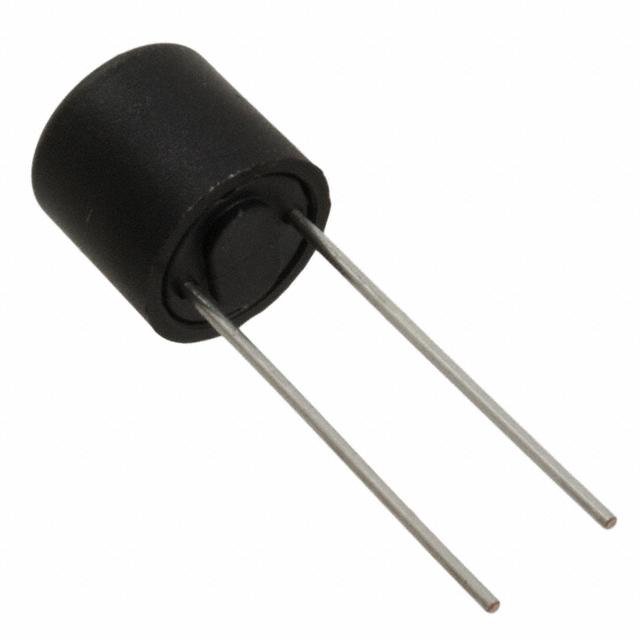

| Description | FUSE BOARD MNT 4A 250VAC 125VDC | FUSE BRD MT 5A 250VAC 63VDC RAD | FUSE BRD MNT 6.3A 250VAC 63VDC | MSF 250 FUSE F 40MA |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Bulk |
