Product CatalogPart Number
016008C-2N4XJRW
Manufacturer
CoilcraftDescription
FIXED INDUCTOR 0.0024UH SMD
Datasheet
DatasheetPackage
01005 (0402 Metric)
In Stock
57,627 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
016008C-2N4XJRW
016008C-2N4XJRW

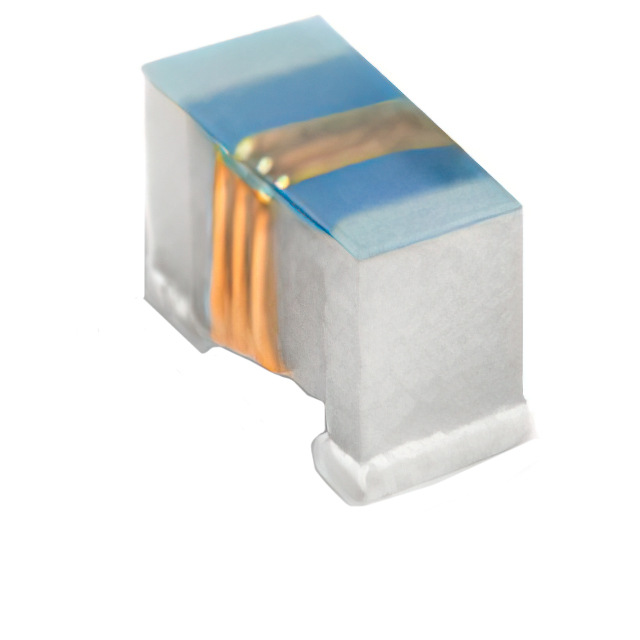

lmages are for reference only.Payment Methods
Delivery Services
2.4 nH Unshielded Wirewound Inductor 225 mA 260mOhm Max 01005 (0402 Metric)
Quick Inquiry
016008C-2N4XJRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 016008C |
| Packaging | Strip |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 2.4 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 225 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 260mOhm Max |
| Q @ Freq | 27 @ 900MHz |
| Frequency - Self Resonant | 14.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | 1005 |
| Size / Dimension | 0.019" L x 0.011" W (0.47mm x 0.28mm) |
| Height - Seated (Max) | 0.014" (0.35mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 016008C-20NXJRW | 016008C-24NXJRW | 016008C-2N0XJRW | 016008C-2N2XJRW |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | FIXED INDUCTOR 0.02UH SMD | FIXED INDUCTOR 0.024UH SMD | FIXED INDUCTOR 0.002UH SMD | FIXED INDUCTOR 0.0022UH SMD |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Strip | Strip | Strip | Strip |
