0230.500DRT1P
lmages are for reference only.0230.500DRT1P
FUSE GLASS 500MA 250VAC 125VDC
DatasheetCartridge, Non-Standard (Axial)
36,321 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500 mA 250 V AC 125 V DC Fuse Cartridge, Glass Through Hole Cartridge, Non-Standard (Axial)
0230.500DRT1P
| Category | Circuit Protection - Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | 230 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge, Glass |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Response Time | Slow Blow |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Breaking Capacity @ Rated Voltage | 35A AC, 10kA DC |
| Melting I²t | 1.16 |
| Approval Agency | CE, CSA, UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.6935 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0230.750DRT1P | 0230004.DRT1P | 023001.5HXW | 023003.5DRT1P |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |

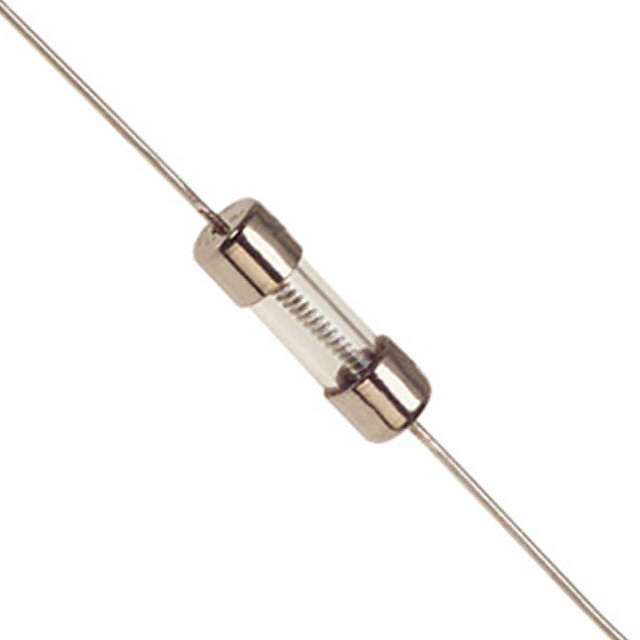

| Description | FUSE GLASS 750MA 250VAC 125VDC | FUSE GLASS 4A 125VAC/VDC AXIAL | FUSE GLASS 1.5A 250VAC AXIAL | FUSE GLASS 3.5A 250VAC 125VDC |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Bulk | Cut Tape (CT) |
