Product CatalogPart Number
0302CS-8N3XJRW
Manufacturer
CoilcraftDescription
FIXED IND 8.3NH 590MA 150MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
98,100 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0302CS-8N3XJRW
0302CS-8N3XJRW

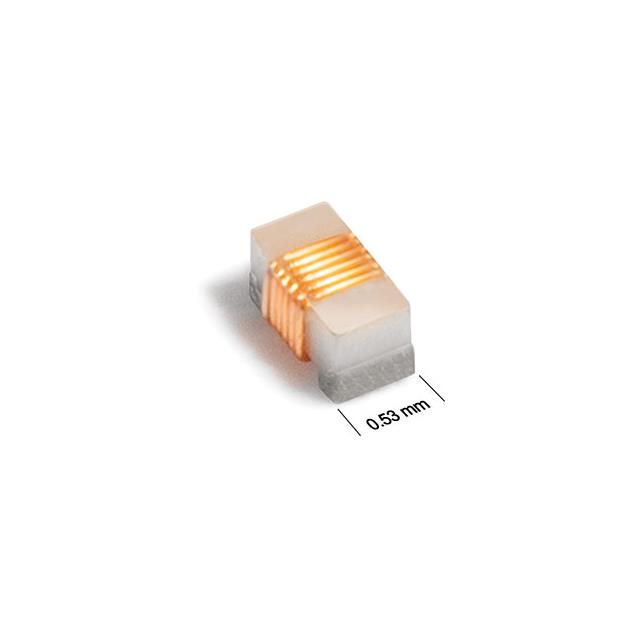

lmages are for reference only.Payment Methods
Delivery Services
8.3 nH Unshielded Inductor 590 mA 150mOhm Max Nonstandard
Quick Inquiry
0302CS-8N3XJRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0302CS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | - |
| Material - Core | Ceramic |
| Inductance | 8.3 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 590 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 58 @ 900MHz |
| Frequency - Self Resonant | 8.19GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.034" L x 0.021" W (0.86mm x 0.53mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | 0302CS-82NXJRW | 0302CS-8N3XJRW | 0302CS-101XJRW | 0302CS-10NXJRW |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ||||
| Description | FIXED IND 82NH 170MA 2.2OHM SM | FIXED IND 8.3NH 590MA 150MOHM SM | FIXED IND 100NH 140MA 3.26OHM SM | FIXED IND 10NH 620MA 140MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
