0313015.H

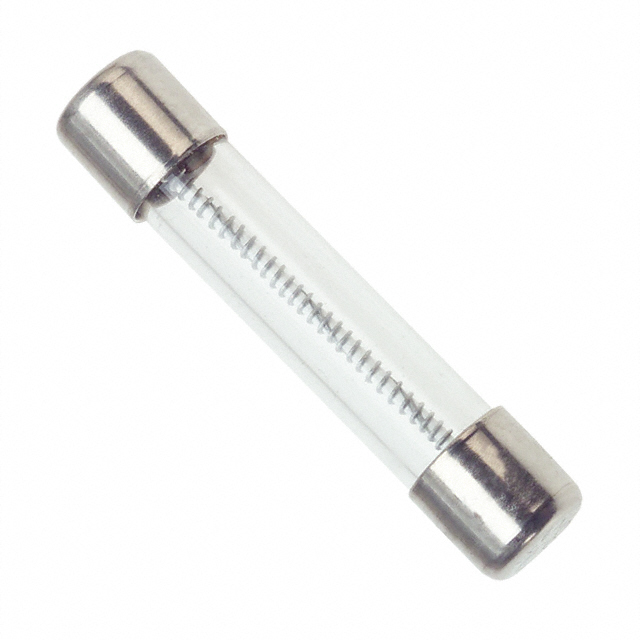

lmages are for reference only.0313015.H
FUSE GLASS 15A 32VAC 3AB 3AG
Datasheet3AB, 3AG, 1/4" x 1-1/4"
80,824 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 A 32 V AC DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
0313015.H
| Category | Circuit Protection - Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | 313 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Glass |
| Current Rating (Amps) | 15 A |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | - |
| Response Time | Slow Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 300A |
| Melting I²t | 1870.0 |
| Approval Agency | UL |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.005 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0313015.HXP | 0313015.VXP | 0313010.HXID | 0313010.HXIDP |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FUSE GLASS 15A 32VAC 3AB 3AG | FUSE GLASS 15A 32VAC 3AB 3AG | FUSE GLASS 10A 32VAC 3AB 3AG | FUSE GLASS 10A 32VAC 3AB 3AG |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
